Bus Bar Heat Shrink Tubing is designed for insulating rectangular, square and round bus bar rated from 1 kV through 35 kV. It will also cover and insulate inline
bolted connections of rectangular bus bars. The tubing meets the requirements of ANSI/IEEE Standard C37.20.
Bus Bar Heat Shrink Tubing is made of a specially formulated cross-linked polyolefin. The tubing is colored orange-red. The material has high resistance to splitting, good solvent resistance and excellent tracking resistance properties. The tubing shrinks easily with industry standard methods, forming an aesthetically appealing insulation cover.
Features
Specially formulated cross-linked polyolefin
Excellent physical properties
Excellent dielectric strength
Excellent tracking resistance
Excellent chemical resistance
Good thermal endurance
Flame retardant; self extinguishing
Flexible; conforms to bends
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

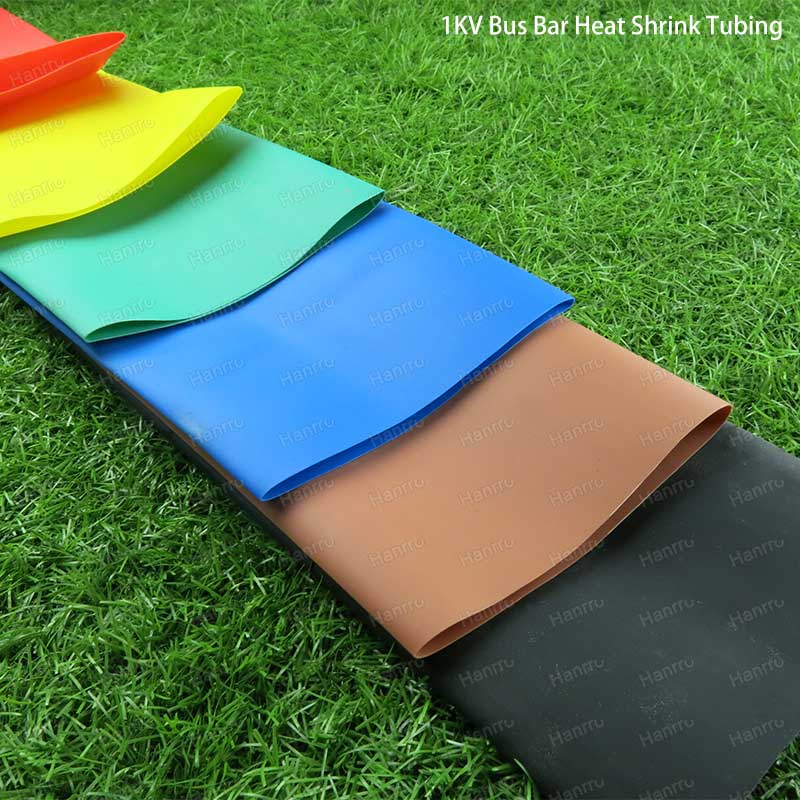

| 1KV Bus Bar Heat Shrink Tubing | |||||
| Specification |
Applicable Busbar Width |
Dimension Before Shrinking |
Dimension After Shrinking |
||
| Internal Diameter | Wall Thickness | Internal Diameter | Wall Thickness | ||
| 1kv MPG30 | 20-30 | 30.2±0.8 | 0.45±0.15 | 14.7±1.0 | 0.9±0.2 |
| 1kv MPG35 | 30-40 | 35.2±0.8 | 0.50±0.15 | 17.3±1.0 | 1.0±0.2 |
| 1kv MPG40 | 40-50 | 40.0±1.0 | 0.50±0.15 | 19.8±1.0 | 1.0±0.2 |
| 1kv MPG50 | 50-60 | 50.0±1.0 | 0.50±0.15 | 24.8±1.0 | 1.0±0.2 |
| 1kv MPG60 | 60-70 | 60.0±1.0 | 0.65±0.15 | 29.8±1.0 | 1.1±0.2 |
| 1kv MPG70 | 80-90 | 70.0±1.0 | 0.65±0.15 | 34.0±2.0 | 1.1±0.2 |
| 1kv MPG80 | 90-100 | 80.0±1.0 | 0.65±0.20 | 39.0±2.0 | 1.2±0.2 |
| 1kv MPG90 | 120 | 90.0±1.0 | 0.65±0.20 | 44.0±2.0 | 1.2±0.2 |
| 1kv MPG100 | 140 | 100.0±2.0 | 0.65±0.20 | 49.0±2.0 | 1.3±0.2 |
| 1kv MPG120 | 180 | 120.0±2.0 | 0.80±0.20 | 59.0±2.0 | 1.4±0.2 |
| 1kv MPG150 | 240 | 150.0±2.0 | 0.80±0.20 | 74.0±2.0 | 1.4±0.2 |

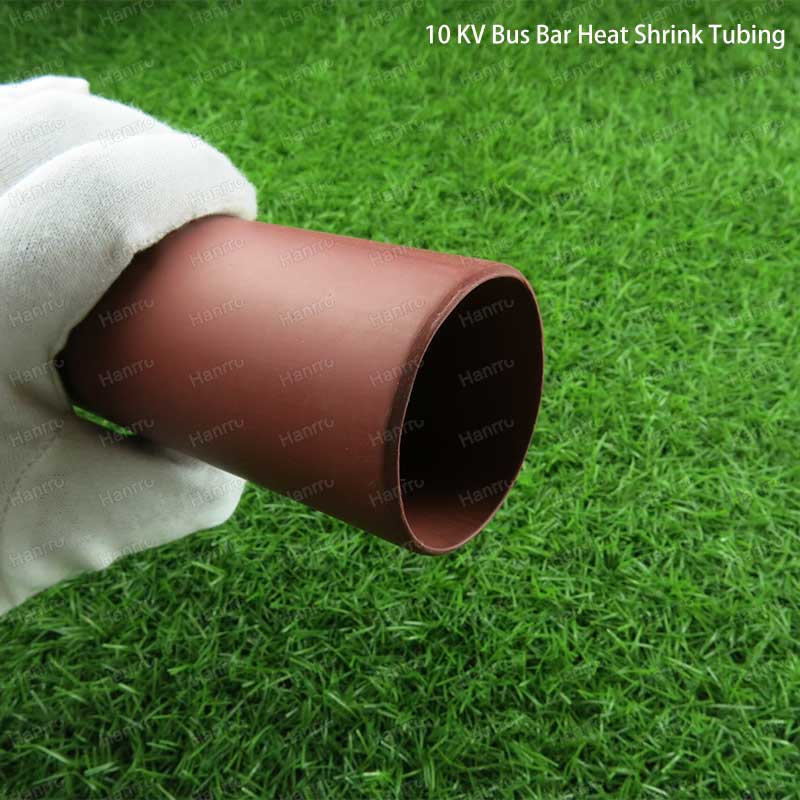

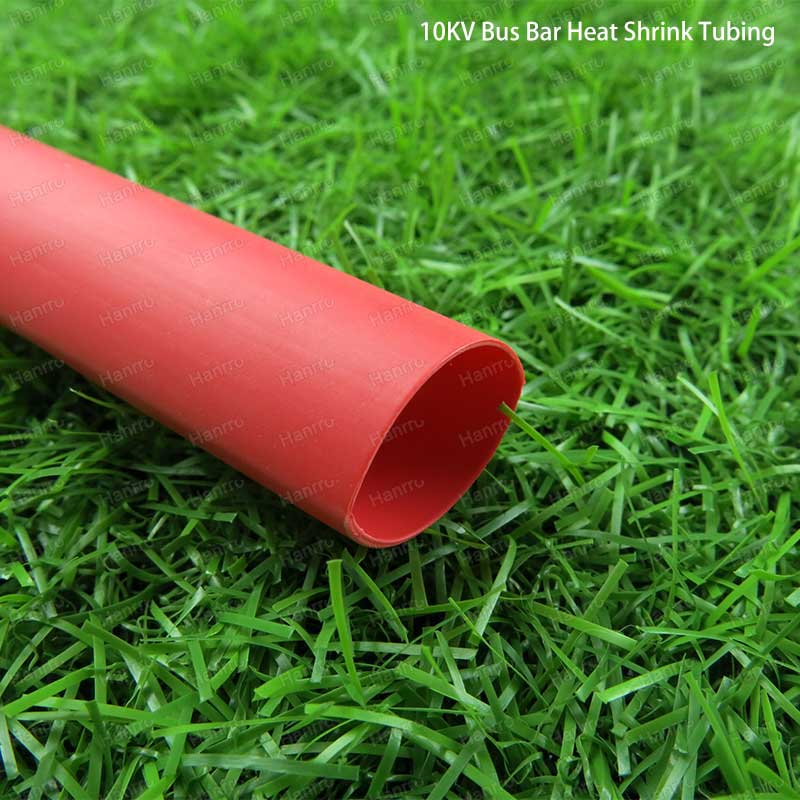

| 10 KV Bus Bar Heat Shrink Tubing | |||||
| 10kv MPG15 | 10-15 | 15±1 | 0.8±0.2 | 6 | 1.6±0.2 |
| 10kv MPG20 | 12-18 | 20±1 | 0.8±0.2 | 8 | 1.6±0.2 |
| 10kv MPG25 | 20-30 | 25±1 | 1.0±0.2 | 10 | 2.0±0.2 |
| 10kv MPG30 | 30-40 | 30±1 | 1.0±0.2 | 13 | 2.0±0.2 |
| 10kv MPG40 | 40-50 | 40±1 | 1.0±0.2 | 15 | 2.2±0.2 |
| 10kv MPG50 | 50-60 | 50±2 | 1.2±0.2 | 20 | 2.2±0.2 |
| 10kv MPG60/65 | 60-70 | 65±2 | 1.2±0.2 | 24 | 2.5±0.2 |
| 10kv MPG80 | 80-100 | 80±3 | 1.2±0.3 | 32 | 2.5±0.2 |
| 10kv MPG100 | 100-120 | 100±4 | 1.2±0.3 | 40 | 2.5±0.2 |
| 10kv MPG120 | 150 | 120±4 | 1.2±0.3 | 48 | 2.7±0.3 |
| 10kv MPG150 | 200 | 150±4 | 1.2±0.3 | 60 | 2.7±0.3 |
| 10kv MPG180 | max | 180±5 | 1.2±0.3 | 70 | 2.7±0.3 |
| 10kv MPG210 | max | 210±5 | 1.2±0.3 | 80 | 2.7±0.3 |
| 35KV Bus Bar Heat Shrink Tubing | |||||
| 35kv MPG30 | 30-40 | 30±2 | 2.0±0.3 | 13 | 3.5±0.3 |
| 35kv MPG40 | 40-50 | 40±2 | 2.0±0.3 | 15 | 3.5±0.3 |
| 35kv MPG50 | 50-60 | 50±2 | 2.0±0.3 | 20 | 4.0±0.3 |
| 35kv MPG60/65 | 60-70 | 65±2 | 2.0±0.3 | 24 | 4.0±0.3 |
| 35kv MPG80 | 80-100 | 80±3 | 2.2±0.3 | 32 | 4.0±0.3 |
| 35kv MPG100 | 100-120 | 100±4 | 2.5±0.3 | 40 | 4.0±0.3 |
| 35kv MPG120 | 150 | 120±4 | 2.5±0.3 | 48 | 4.5±0.3 |
| 35kv MPG150 | 200 | 150±4 | 2.5±0.3 | 60 | 4.5±0.3 |
| 35kv MPG180 | max | 180±5 | 2.5±0.3 | 70 | 4.5±0.3 |
| 35kv MPG210 | max | 210±5 | 2.5±0.3 | 80 | 4.5±0.3 |
