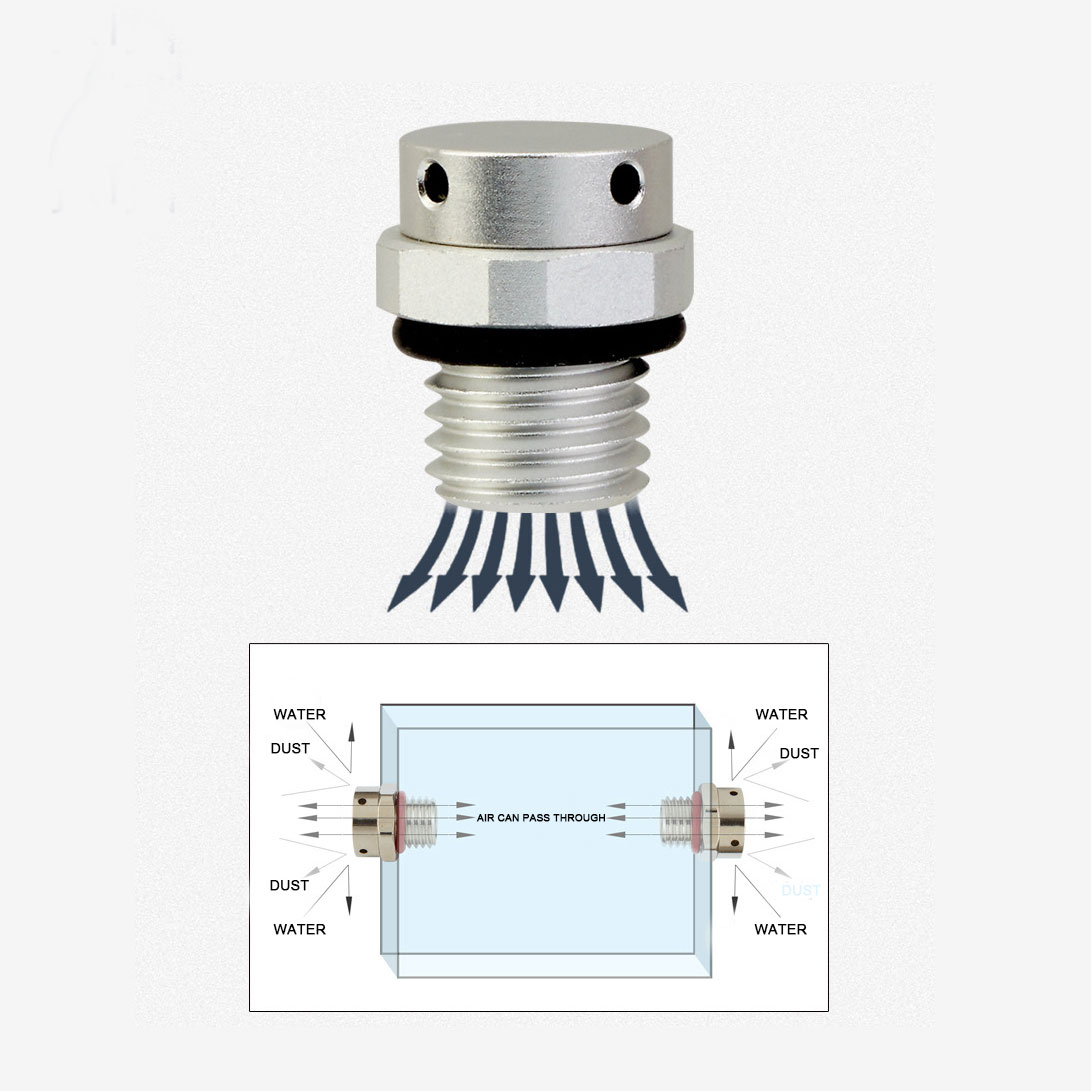

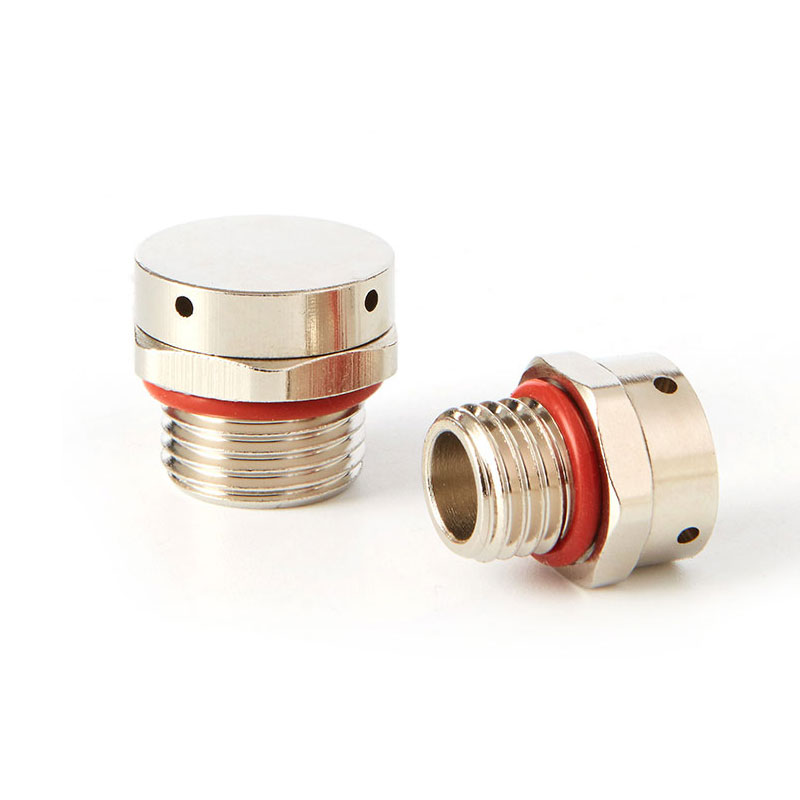

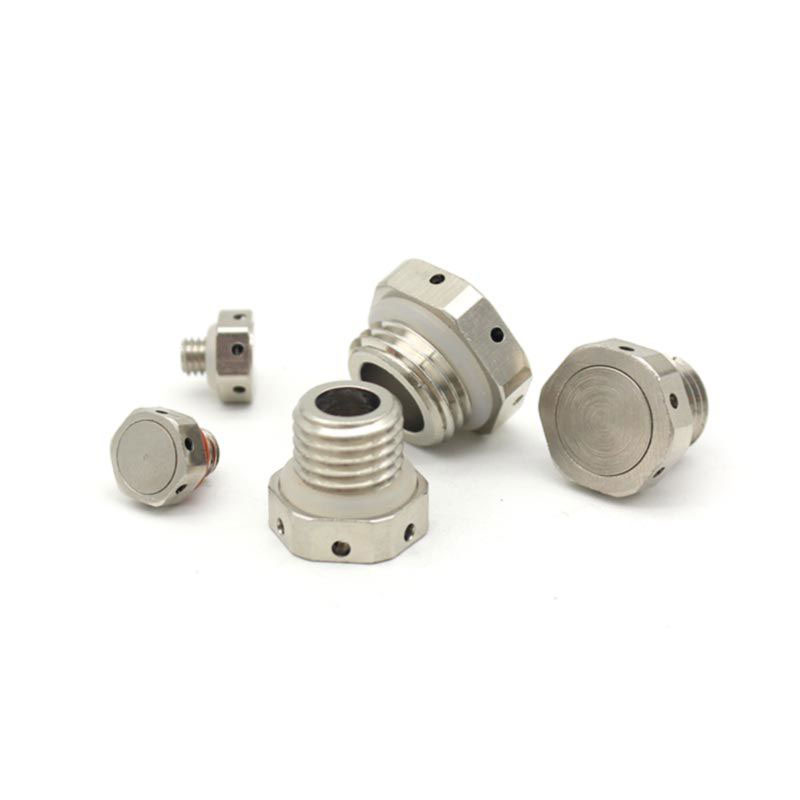

Brass Vent Plug is design for venting air and preventing water intake, can be used to relieve pressure or vacuum on bearing housings, gear boxes, reservoirs, or any application where venting is necessary. Hanrro Connector’ brass air vent plugs protection level can reach IP68, offer various levels of air flow and help to equalize temperature and pressure and prevent internal condensation. Welcome to contact us for a quote or samples.
Thread Size : Metric
Material : Brass with Nickle Plated
Protection Degree : IP68
Working Temperature : -40℃ to 100℃
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Spec | Air permeability | Thread length | Total length | Thread diameter | spanner |
| M5X0.8 | ≥1.2L/mim/c㎡@70mbar | 7mm | 15mm | 5mm | 10mm |
| M6X1 | ≥1.2L/mim/c㎡@70mbar | 7mm | 15mm | 6mm | 10mm |
| M8X1.25 | ≥1.2L/mim/c㎡@70mbar | 7mm | 13mm | 8mm | 12mm |
| M12X1.5 | ≥1.2L/mim/c㎡@70mbar | 8mm | 17mm | 12mm | 16mm |
| M12X1.5 | ≥1.2L/mim/c㎡@70mbar | 10mm | 18mm | 12mm | 17mm |
| M16X1.5 | ≥1.2L/mim/c㎡@70mbar | 10mm | 19.5mm | 16mm | 20mm |
| M20X1.5 | ≥1.2L/mim/c㎡@70mbar | 10mm | 19.5mm | 20mm | 22mm |
