Bare Butt Splices are terminals that are used to mate, connect, or terminate a single wire. They are best suited when special performance or installation characteristics are not needed. Bare Butt Splices popular terminals used in applications that utilizes wire to transfer electrical current

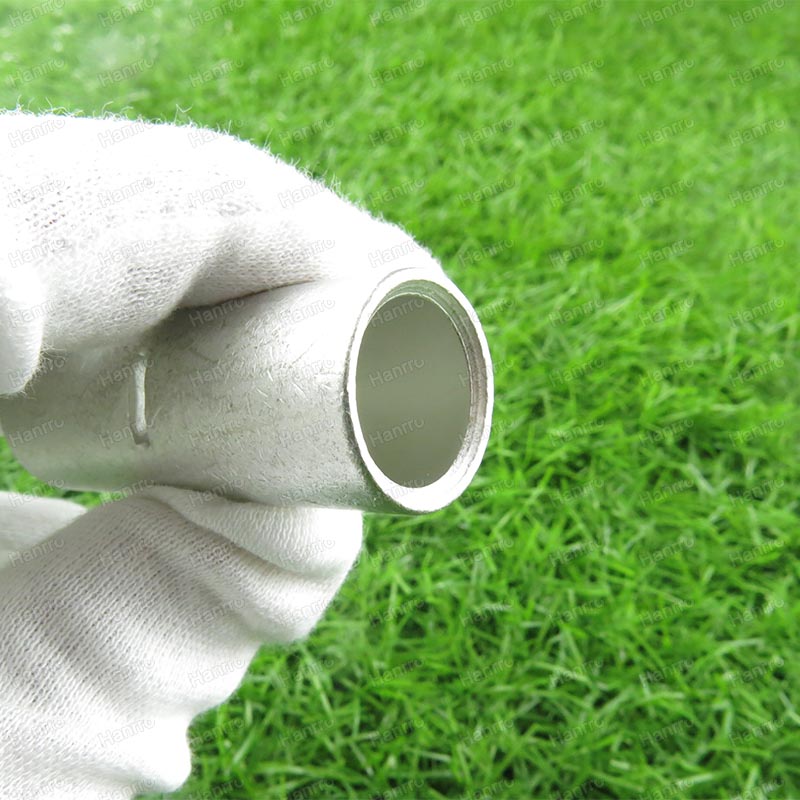

- The barrel on this non-insulated butt connector can be crimped anywhere on the barrel surface.

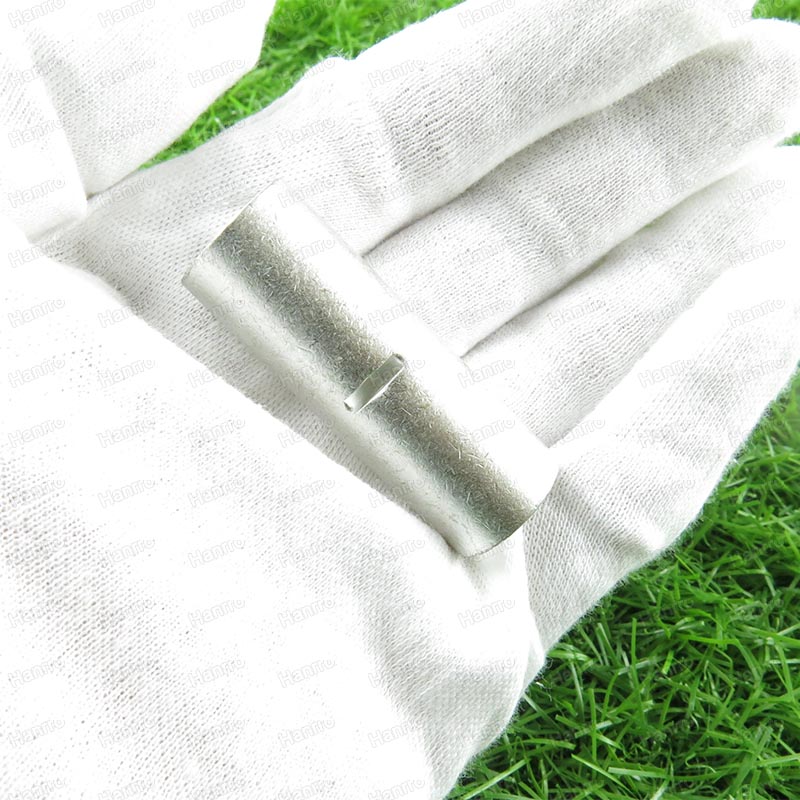

- The brazed seam will not separate under pressure or operating stress.

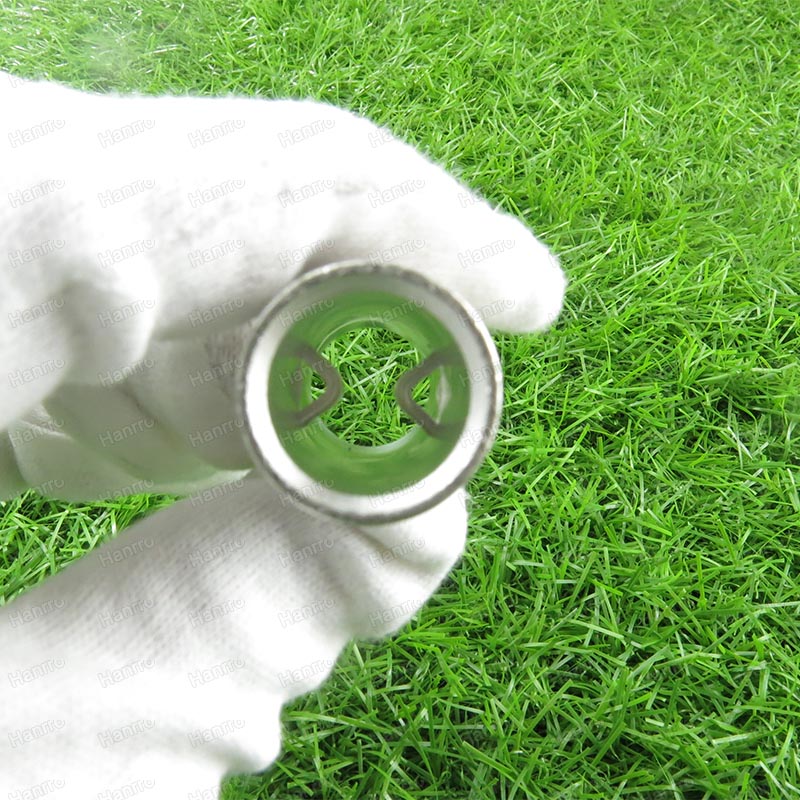

- Stranded wire cannot escape the confines of the sealed barrel during or after crimping.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

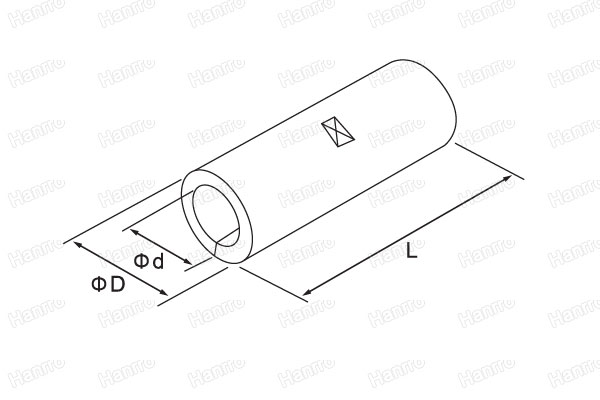

| Item No | Dimension | ||
| L | Φ D | Φ d | |
| L1.5 | 20 | 3.7 | 1.8 |
| L2.5 | 20 | 4.0 | 2.4 |
| L4 | 20 | 4.8 | 3.1 |
| L6 | 20 | 5.5 | 3.8 |
| L10 | 20 | 6.2 | 4.5 |
| L16 | 40 | 7.1 | 5.4 |
| L25 | 45 | 8.8 | 6.8 |
| L35 | 45 | 10.6 | 8.2 |
| L50 | 45 | 12.4 | 9.5 |
| L70 | 50 | 14.7 | 11.2 |
| L95 | 50 | 17.4 | 13.5 |
| L120 | 55 | 19.4 | 15 |
| L150 | 60 | 21.2 | 16.5 |
| L185 | 65 | 23.5 | 18.5 |
| L240 | 80 | 26.5 | 21 |
| L300 | 85 | 30.0 | 23.5 |
| L400 | 90 | 36.5 | 28.5 |
| L500 | 100 | 39 | 30 |
| L550 | 100 | 41.4 | 31.7 |
| L630 | 110 | 45 | 35 |
| L800 | 150 | 50.6 | 39 |
| L1000 | 170 | 56.2 | 43 |
