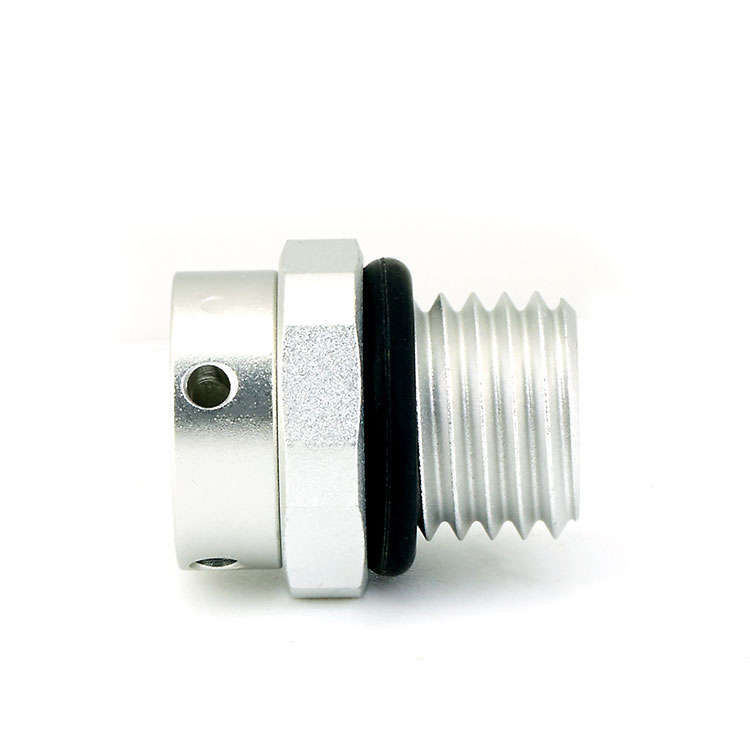

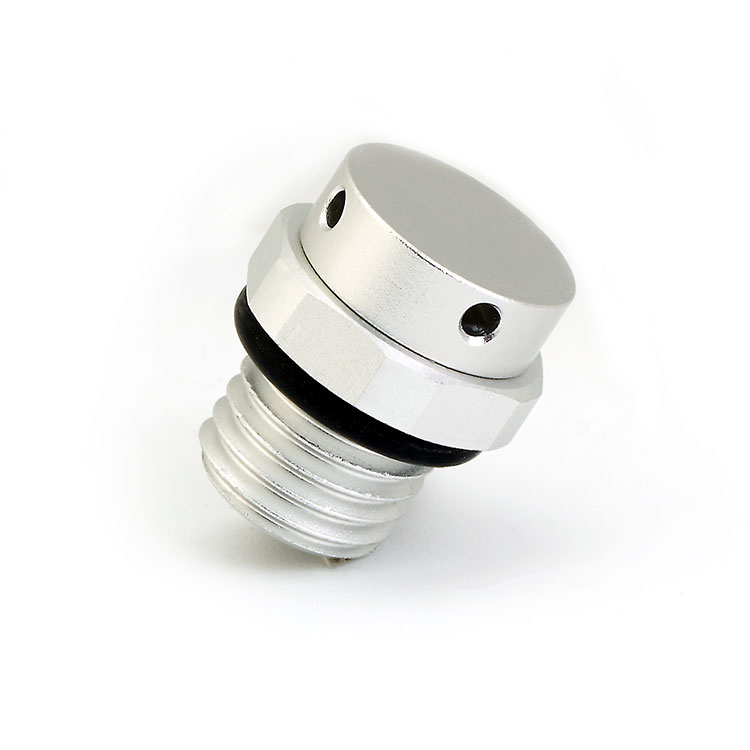

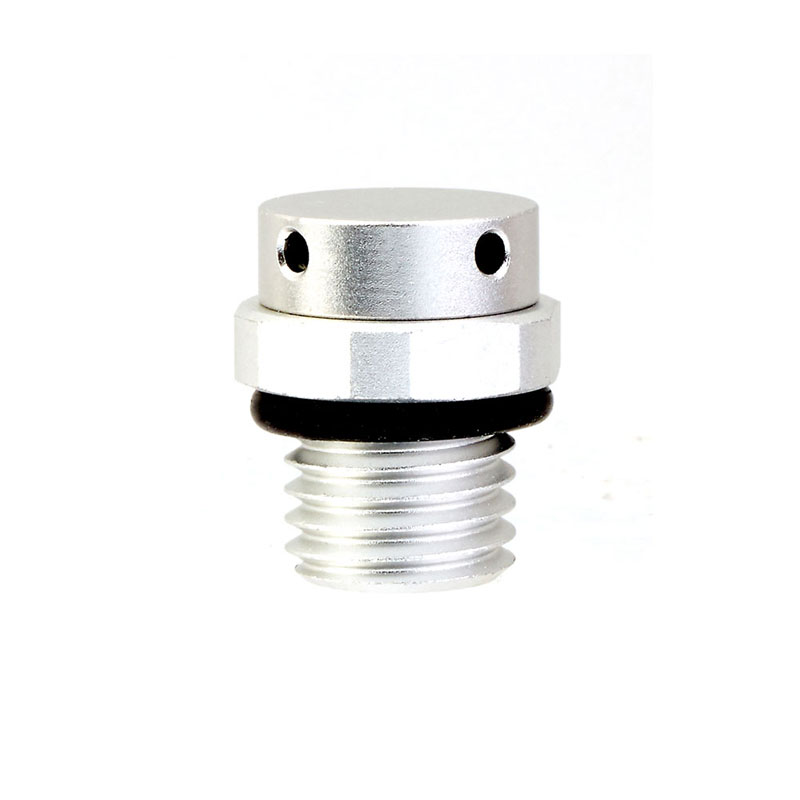

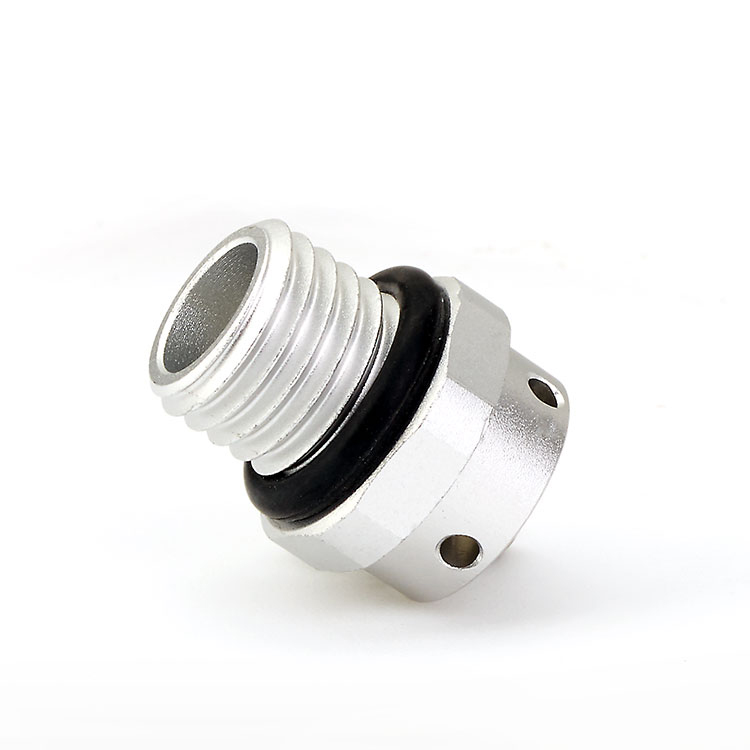

Aluminum Vent Plugs produced by our company from aluminum material should be used to prevent pressure build-up in gear systems (reducer, gearbox, etc.) and to ventilate the system.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
|
Spec |
Air permeability |
Thread length |
Total length |
Thread diameter |
spanner |
|
|
M20X1.5 |
≥1.2L/mim/c㎡@70mbar |
10mm |
19.5mm |
20mm |
22mm |
|
|
M24X1.5 |
≥1.2L/mim/c㎡@70mbar |
8mm |
23mm |
24mm |
30mm |
|
|
M25X1.5 |
≥1.2L/mim/c㎡@70mbar |
8mm |
23mm |
25mm |
30mm |
|
|
G3/8 |
≥1.2L/mim/c㎡@70mbar |
10mm |
20mm |
16.6mm |
22mm |
|
|
Gl/4 |
≥1.2L/mim/c㎡@70mbar |
7mm |
15mm |
13.3mm |
17mm |
