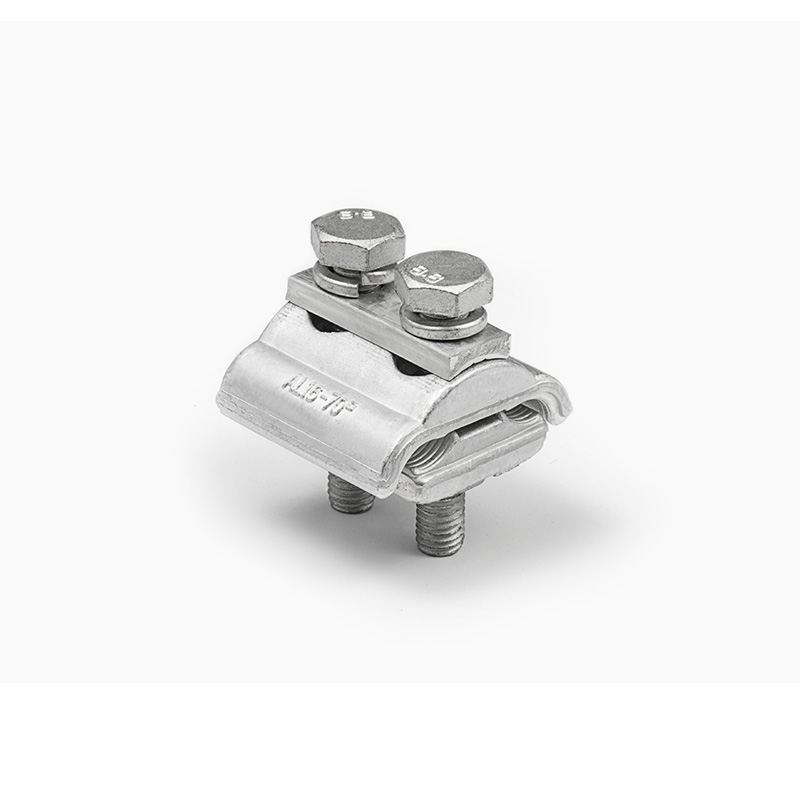

Aluminum Parallel Groove Clamps are designed to connect two aluminium conductors.
Feature :

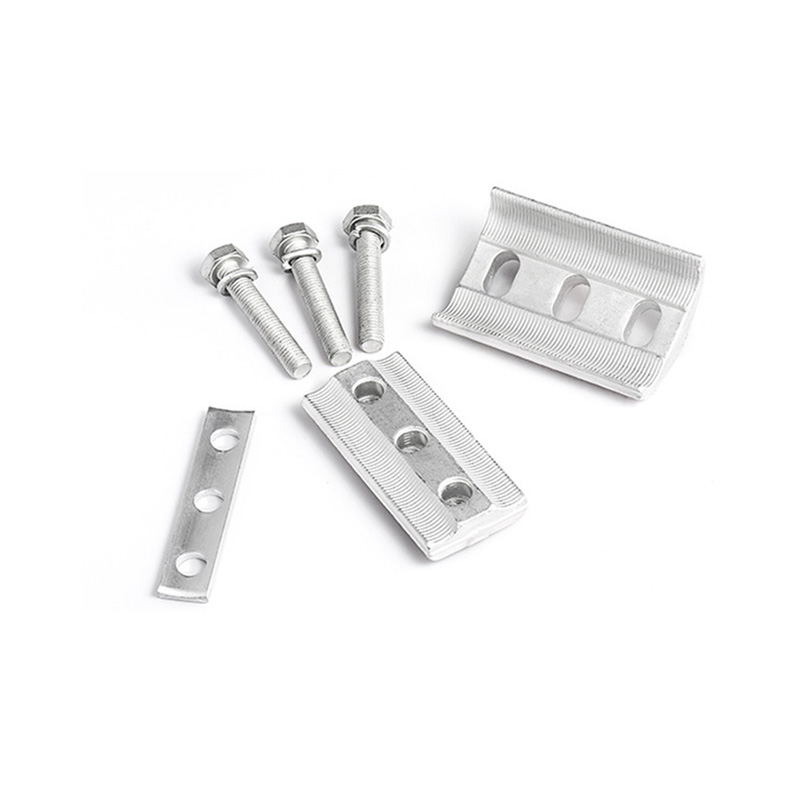

1)Advanced forging technology enhances the mechanical strength of the clamp.
2)Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
3)Clamp body is made of aluminium with excellent electrical conductivity.
4)Gross-grooved clamp channels enhance both mechanical pullout strength and electrical conductivity.
5)Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and Stainless steel
6)Pressure pad is applied to achieve uniform pressure along the clamp.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Cable Range (mm2) | Bolt |

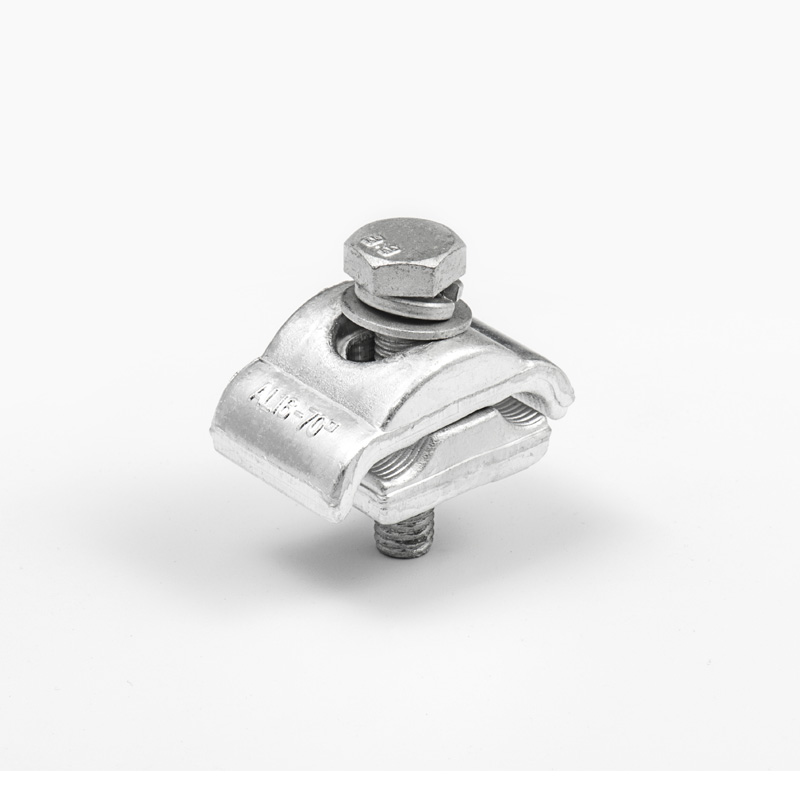

| APG-A1 | AL 16-70 | 1 x M8 x 40 |
| APG-A2 | AL 16-150 | 1 x M8 x 45 |
| APG-B1 | AL 16-35 | 2 x M6 x 35 |
| APG-B2 | AL 16-70 | 2 x M8 x 45 |
| APG-B3 | AL 16-150 | 2 x M8 x 50 |
| APG-B4 | AL 25-185 | 2 x M10 x 60 |

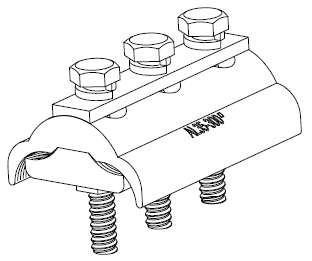

| APG-C1 | AL 16-70 | 3 x M8 x 45 |
| APG-C2 | AL 16-150 | 3 x M8 x 50 |
| APG-C3 | AL 25-240 | 3 x M10 x 60 |
| APG-C4 | AL 35-300 | 3 x M10 x 70 |
