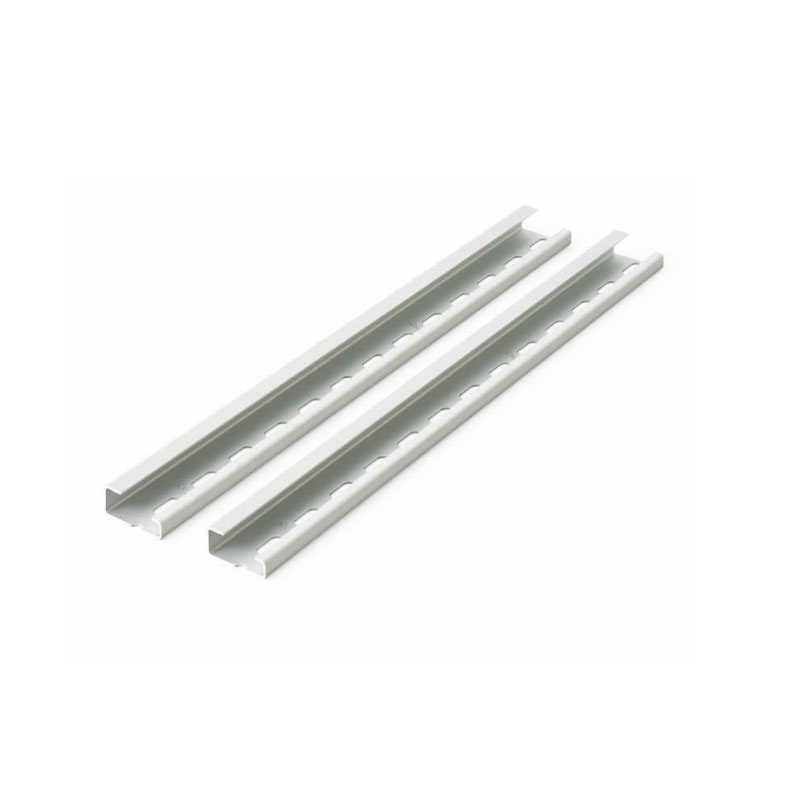

Aluminum G Type DIN Rail

Aluminum G Type DIN Rail are used to hold heavier, higher-power components. It is mounted with the deeper side at the bottom, and equipment is hooked over the lip, then rotated until it clips into the shallower side

Aluminum G Type DIN Rail is designed for Terminal Blocks and Electrical Components Only applications and allows many blocks to be fastened in a panel with only a few screws to anchor the rail to the panel.

Aluminum G Type DIN Rail is lightweight, easy to cut and supplied with slotted holes for easy mounting.It has a non-anodized finish and is treated with galvanic zinc plating and passivation

tag：

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

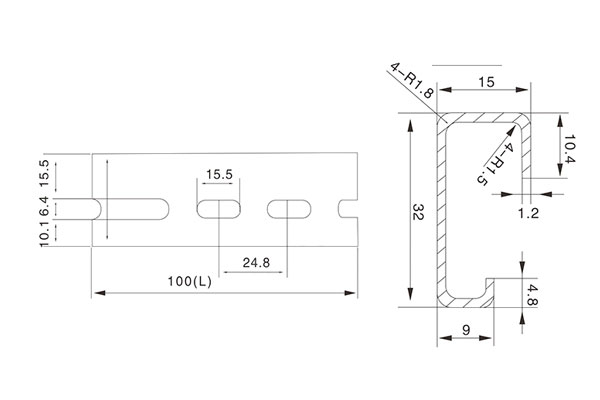

Aluminum G Type DIN Rail-Drawing

Item No Type Thickness Standard Hole Size Standard Length Standard Pack
K-3500 TH32-15/9 1.2mm 5.2 x 15mm 1 Meter or 2 Meter 50 Meter
