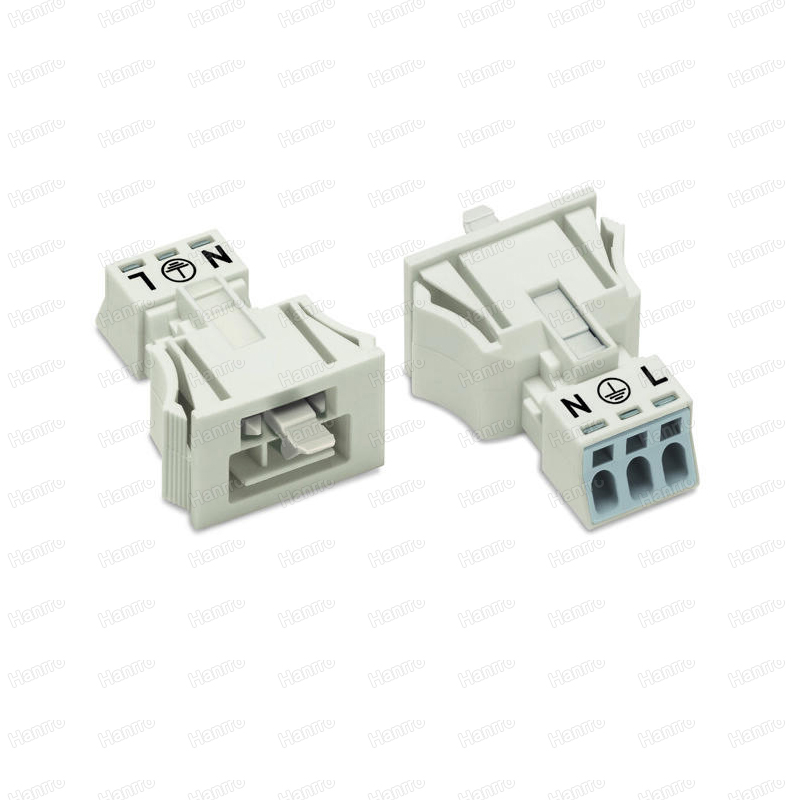

890-733 Through Panel Plug White

890-733 Through Panel Plug Male 3 Poles

Description

Protected against mismating and maintenance-free
Push-in CAGE CLAMP® spring pressure connection technology allows solid conductors to be simply pushed into a unit
Compact design with 4.4 mm pole spacing
When assembled, the installation connectors complies with IP40 and are suitable for easily accessible areas

Note:
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Note on Protection Against Mismating:
All WINSTA^® components are 100% protected against mismating in terms of:
a.) plugging different number of poles
b.) plugging when turned by 180°
c.) plugging when laterally staggered
d.) plugging one pole

tag： 890-733

Add to favorites

Favorite list is empty.

Clear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Material Data

Color White

Insulating Material PA66

Clamping Spring Material Chrome Nickel Spring Steel

Contact Material Copper or Copper Alloy

Rating per IEC/EN 60664-1

Rated Voltage (III/3) 250V

Rated Impulse Voltage (III/3) 4kV

Rated Current 16A

Approvals per UL 1977

Rated Voltage per UL 1977 ( Factory Wiring Only) 600V

Rated Current per UL 1977 ( Factory Wiring Only ) 14A

Connection Data

Connection Technoloty Push-In Cage Clamp

Norminal Cross Section 1.5mm2

Solid Conductor 0.25-1.5mm2/ 22-16 AWG

Stranded Conductor 0.25-1mm2/22-18 AWG

Fine Stranded Conductor 0.25-1.5mm2/22-16 AWG

Strip Length 9mm

No of Poles 3

Geometrical Data

Pin Spacing 4.4mm

Width 24.2mm

Height 16mm

Depth 39.85mm
