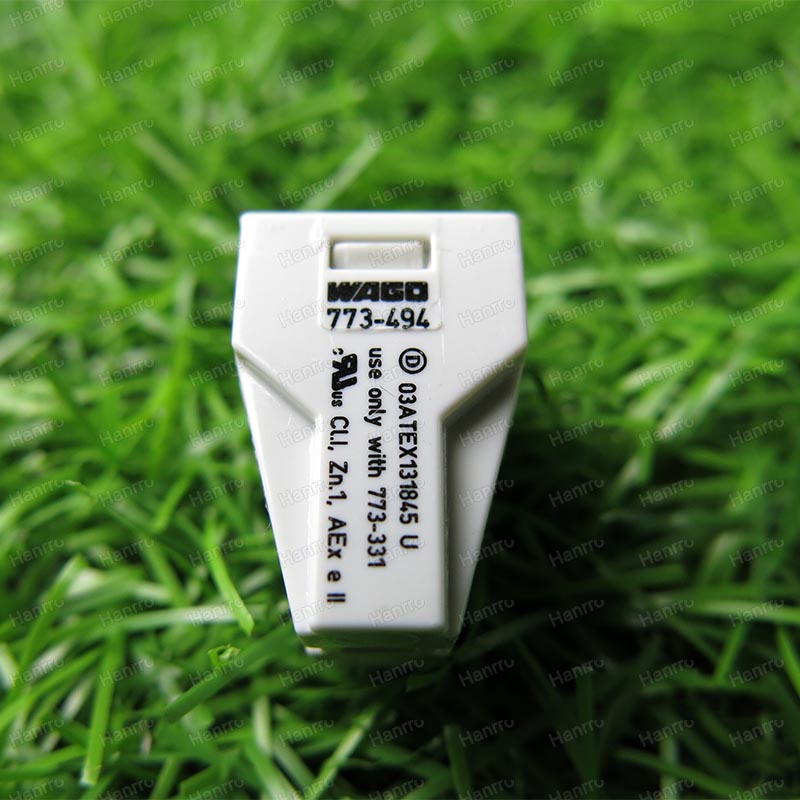

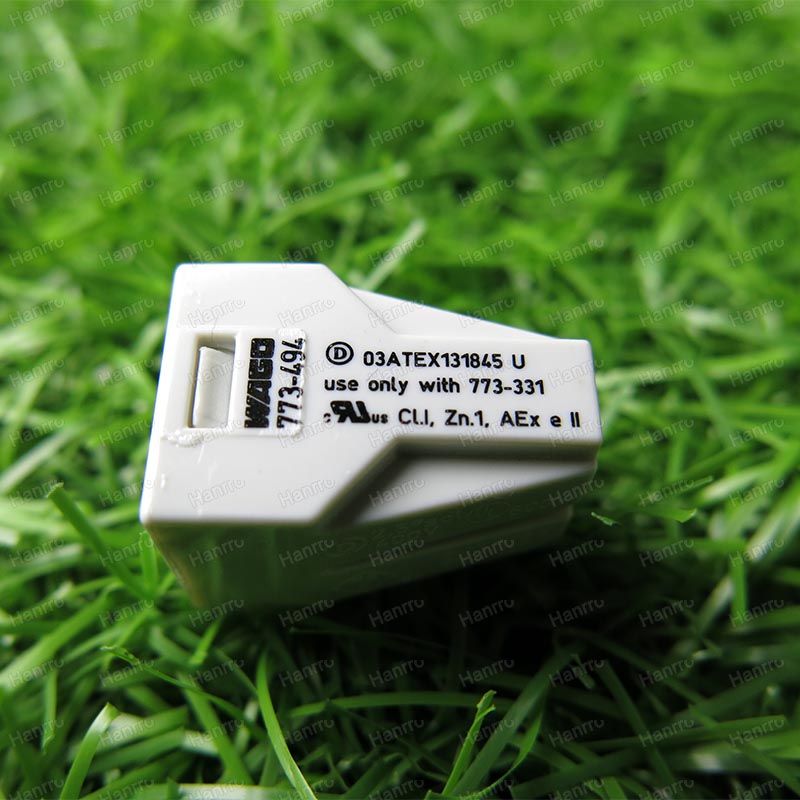

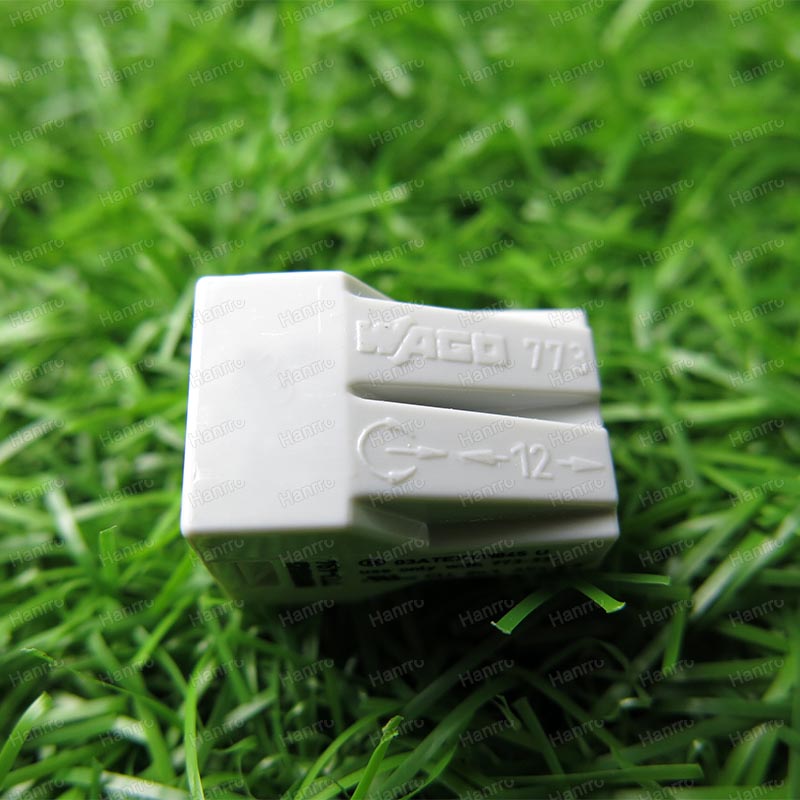

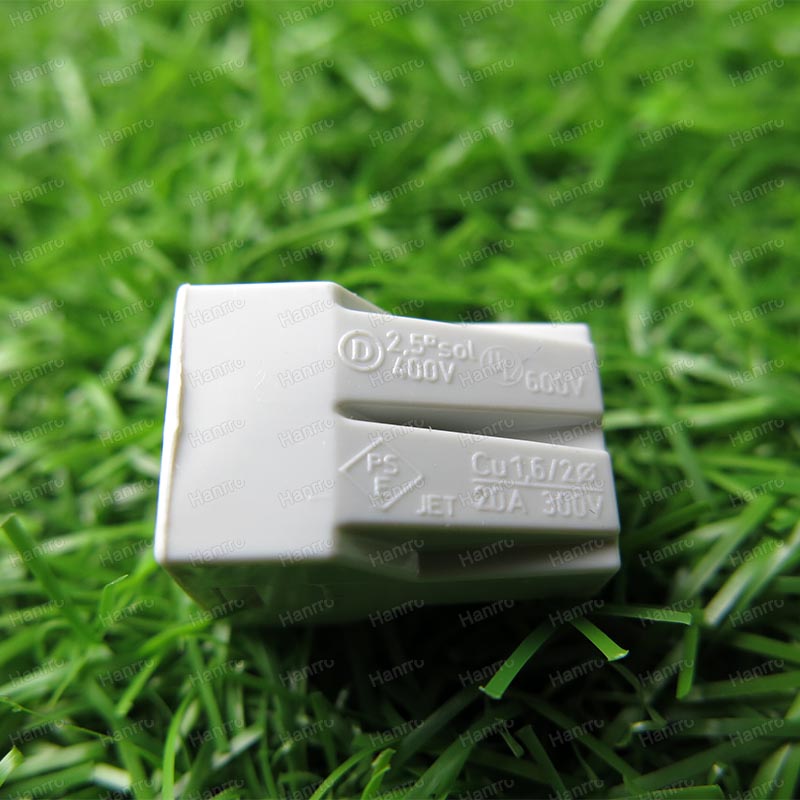

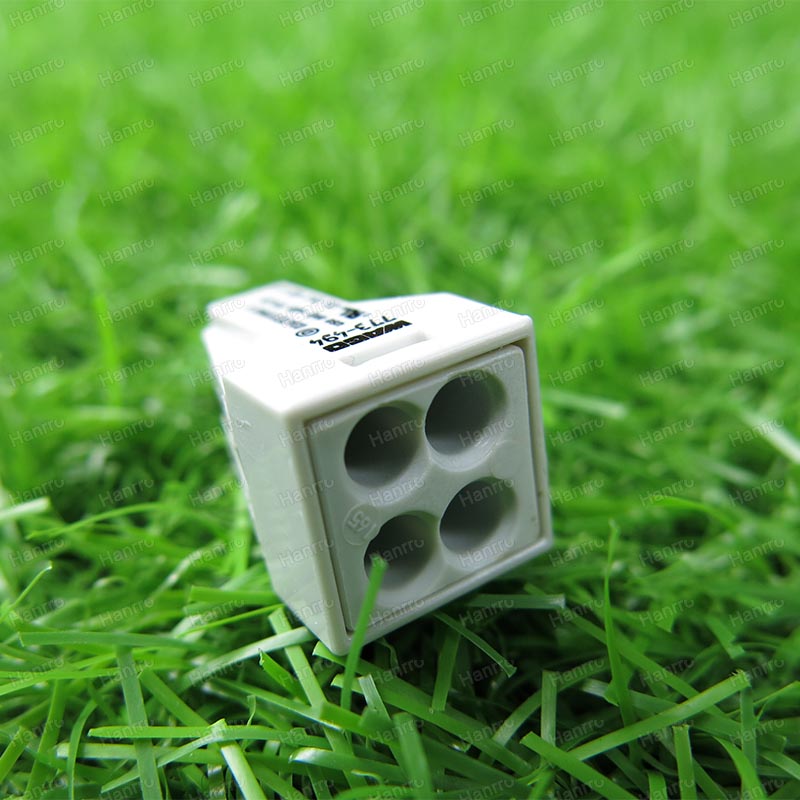

773-494 Push Wire Connectors

773-494 Push Wire Connectors-4 Poles

Description

Note:
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.

Using terminal blocks with PUSH WIRE® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

tag： 773-494

Add to favorites

Favorite list is empty.

Clear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Material Data

Color Light Grey

Insulating Material PA66

Clamping Spring Material Chrome Nickel Spring Steel

Contact Material Copper

Rating per IEC/EN 60664-1

Rated Voltage (II/3) 550V

Rated Current 24A

Connection Data

Connection Technoloty PUSHWIRE

Solid Conductor 0.75-2.5mm2 / 18-14 AWG

Strip Length 12mm

No of Poles 4

Geometrical Data

Width 13mm

Height 13.1mm

Depth 19.5mm

For more details ,Welcome to visit : 773-494
