770-202 Socket Black

770-202 Black Socket-2 Poles

Description

Protected against mismating and maintenance-free
Push-in CAGE CLAMP® spring pressure connection technology allows solid conductors to be simply pushed into a unit
Two-wire connection per pole for loops or bridges

Note:
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
Note on mismating protection:
All WINSTA^® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole

tag： 770-202

Add to favorites

Favorite list is empty.

Clear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Material Data

Color Black

Insulating Material PA66

Clamping Spring Material Chrome Nickel Spring Steel

Contact Material Copper or Copper Alloy

Rating per IEC/EN 60664-1

Rated Voltage (III/3) 250V

Rated Impulse Voltage (III/3) 4kV

Rated Current 25A

Approvals per UL 1977

Rated Voltage per UL 1977 ( Factory Wiring Only) 600V

Rated Current per UL 1977 ( Factory Wiring Only ) 23A

Connection Data

Connection Technoloty Push-In Cage Clamp

Norminal Cross Section 4mm2

Solid Conductor 0.5-4mm2/ 20-12 AWG

Stranded Conductor 0.5-2.5mm2/20-14 AWG

Fine Stranded Conductor 0.5-4mm2/20-12 AWG

Strip Length 9mm

No of Poles 2

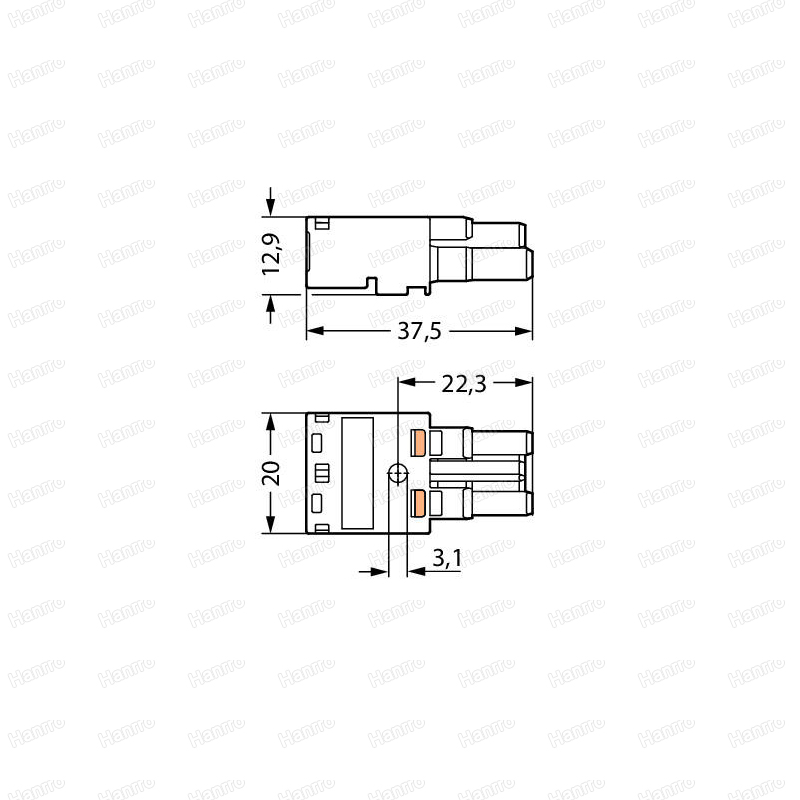

Geometrical Data

Pin Spacing 10mm

Width 20mm

Height 12.9mm

Depth 37.5mm
