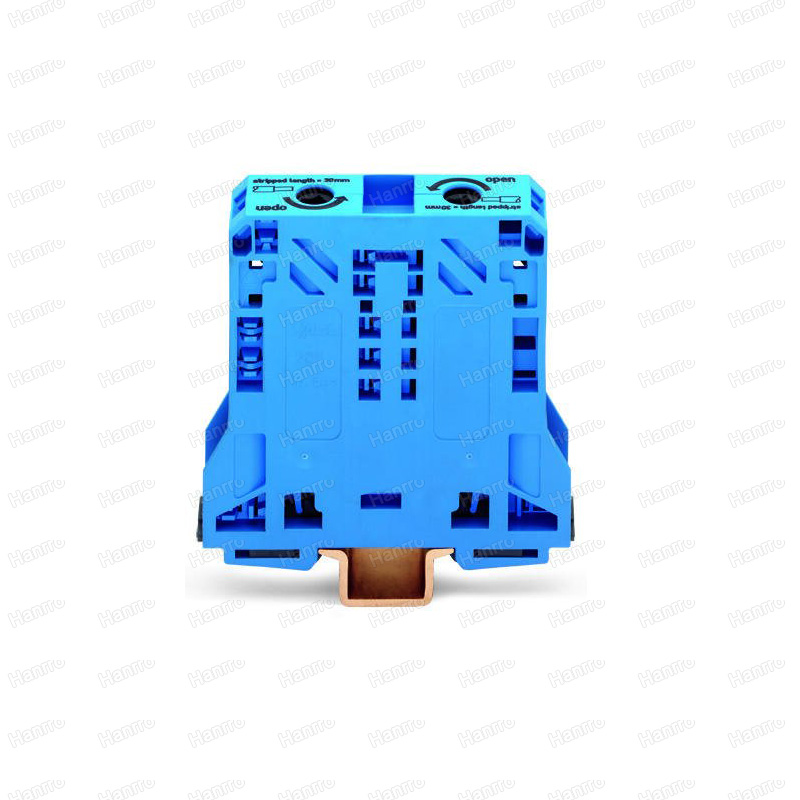

285-154 2 Conductor Through Terminal Block with Power Cage Clamp are designed for Conductors of 50mm2. It have Lateral Marker Slot and Suitable for DIN 35 x 15 Rail. Blue Color Surface Body
Suitable for Every Application
1 Meets the most stringent requirements, including those specified for railway and marine applications
2 Heat- and cold-resistant –even under the heaviest of loads
Always Reliable
1 Optimum clamping force –independent of operator skill
2 100% reliable with vibration-proof, thermal cycling resistant, gas-tight connections
Fast Termination
Eliminate time-consuming preparation – no ring terminals or ferrules required
No expensive torque wrenches or calibration required
Up to 60% faster than wiring with screw terminal blocks
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
Material Data
Color Blue
Insulating Material PA66
Clamping Spring Material Chrome Nickel Spring Steel
Contact Material Copper
Rating per IEC/EN 60664-1
Rated Voltage (III/3) 1000V
Rated Impulse Voltage (III/3) 8kV
Rated Current 150A
Connection Data
Connection Technoloty POWER CAGE CLAMP
Solid Conductor 10-50mm2 / 8-1/0AWG
Stranded Conductor 10-50mm2 / 8-1/0 AWG
Fine Stranded Conductor 10-50mm2 / 8-1/0AWG
Strip Length 30mm
No of Poles 2
Type of Wiring Side Entry Wiring
Geometrical Data
Width 20mm
Height from Upper Edge of Din-35 Rail 87mm
Depth 94mm
For more details specification , Please visit : 285-154
