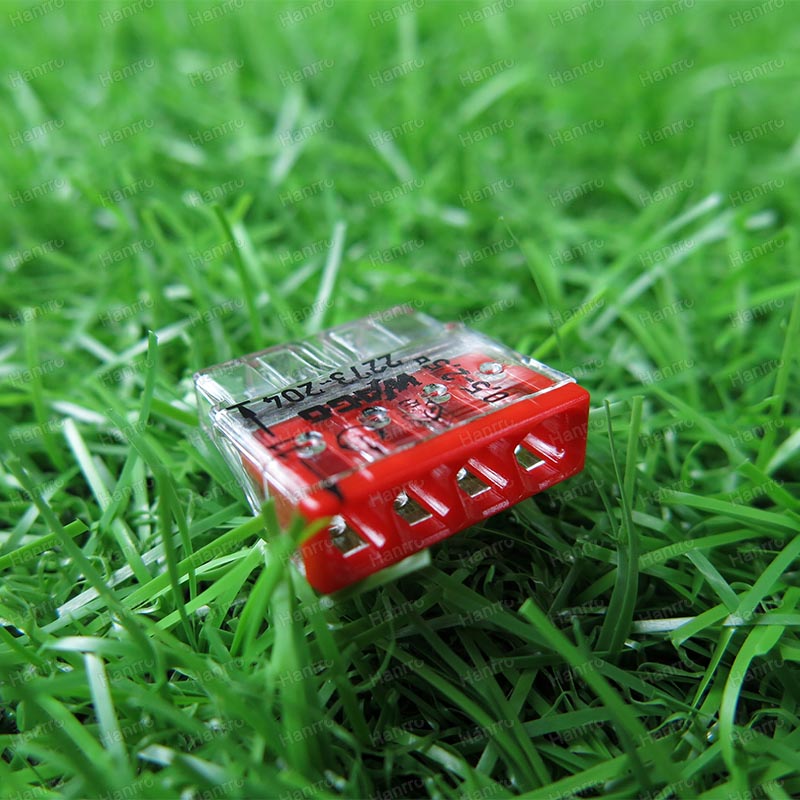

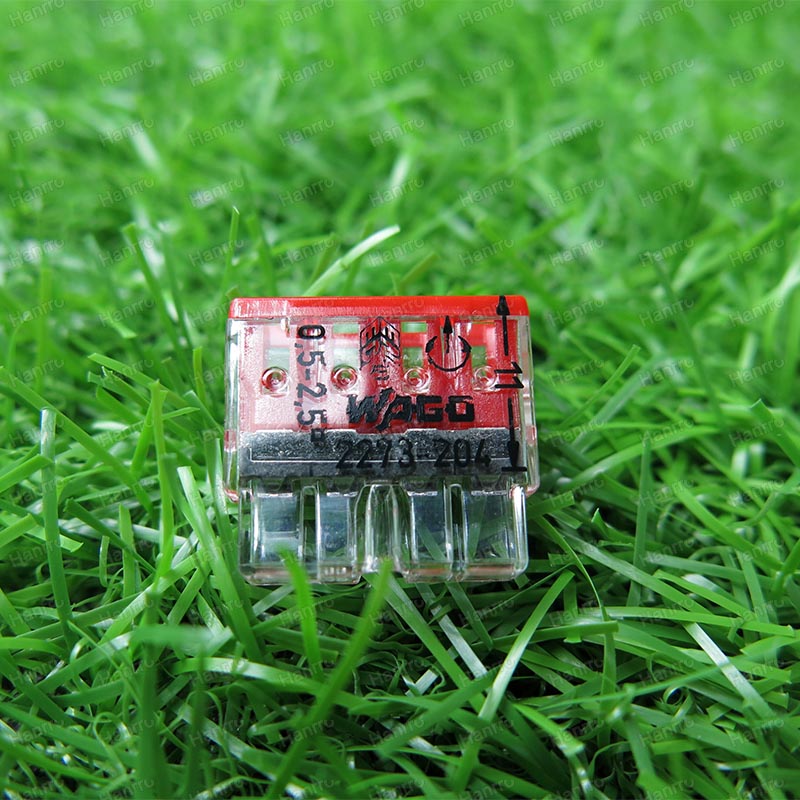

2273-204 is more than 50% smaller than Original 273 Series, which has proven itself in Billions of applications. The transparent enclosure of the connector provides secure and error-free connection Solid conductors.The 2273-204 COMPACT PUSH WIRE® Connector for Junction Boxes – Small is Big.
How to develop the best push-wire connectors ever? Minimize the space requirements in the socket while Ensuring maximum convenience, ease of use, safety and reliability:Convenience from every angle.Small yet Powerful.

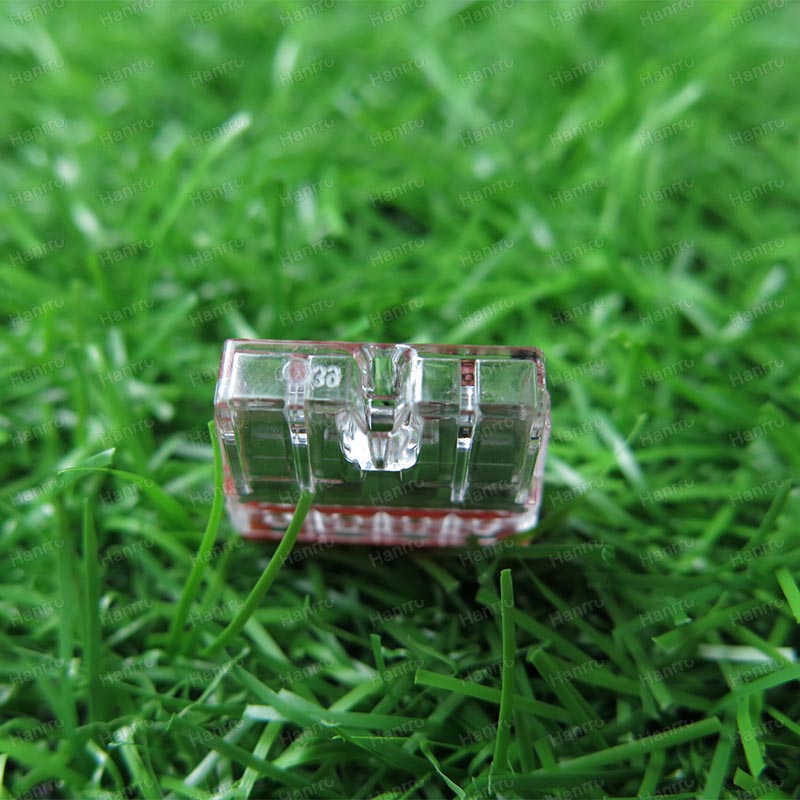

The transparent enclosure allows visual inspection for correct wiring. You can use the clear port to check
If the conductors have been stripped properly, ensuring protection against accidental contact. The test slots are
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Electrical data | |
|
Ratings per IEC/EN 60664-1
|
|
|
Rated voltage (II / 2)
|
450 V |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated current | 24 A |
|
Connection data
|
|
|
Connection technology
|
PUSH WIRE® |
| Actuation type | Push-in |
| Connectable conductor materials | Copper |
| Aluminum | |
| Solid conductor | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Strip length | 11 mm / 0.43 inch |
| Total number of connection points | 4 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Leiterquerschnitte eindrähtig | 0.5 mm² |
| More | |
|

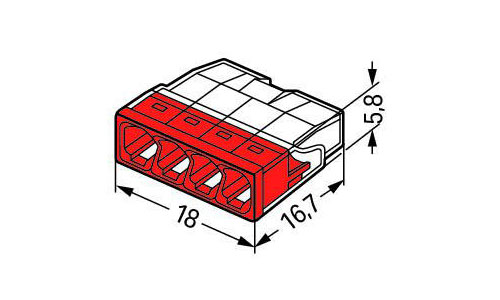

Geometrical Data
|
|
|
Width
|
18 mm / 0.709inch |
| Height | 5.8 mm / 0.228 inch |
| Depth | 16.7 mm / 0.657 inch |
| Plug width | 18 mm / 0.709 inch |
|
Material Data
|
|
|
Color
|
transparent |
| Cover color | red |
| Flammability class per UL94 | V2 |
| Fire load | 0.025 MJ |
| Weight | 1.3 g |
|
Environmental Requirements
|
|
|
Continuous operating temperature
|
105 °C |
| T-Marking per EN 60998 | T60 |
|
Commercial data
|
|
|
Product Group
|
7 (Push Wire Conn.) |
| Country of origin | DE |
| GTIN | 4050821027867 |
