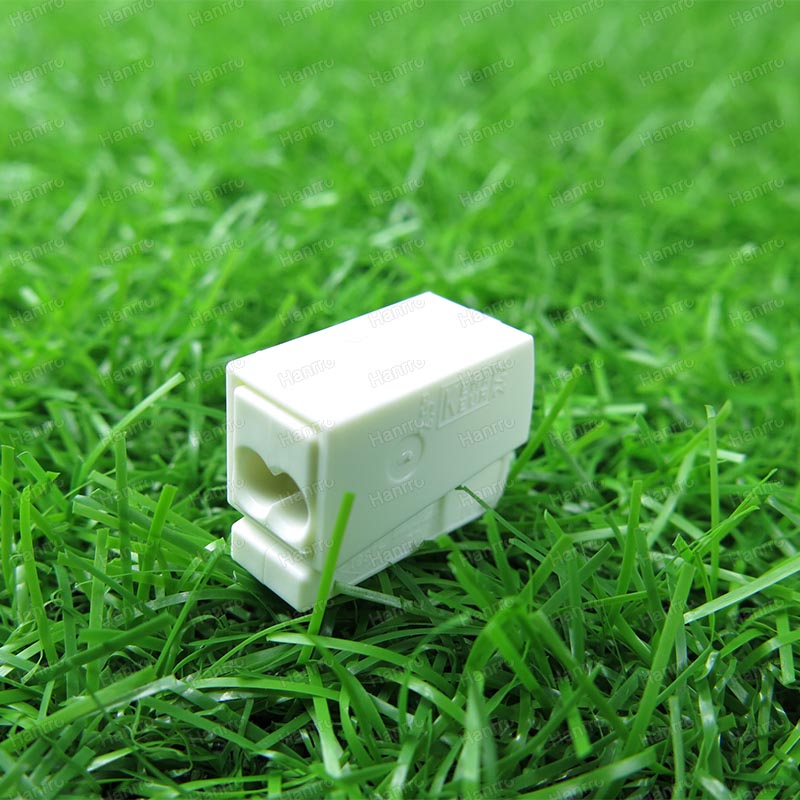

224-112 is the ideal connection between solid and fine-stranded conductors.especially for the high temperature envirnonment..It is used for wire 1-pole (1x solid to 2x solid, stranded, or fine-stranded); white
The lighting connector (for easy lighting connection), the 2-conductor lighting connector for easy lighting Connection with connection of the installation side) and the service connector (for easy connection of all Conductor combinations “s” and “f-st”). Due to their approval as independent equipment according to EN 60998,
The lighting connectors of the 224-112 can be used in nearly all electrical connections where a connection Between solid and fine-stranded conductors is required for household and similar purposes in buildings.
Applications can be, for example, automated blinds or awnings, window or bathroom fans, boiler controller, Tight connections of electrical devices with stranded conductors, circulating pumps etc
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

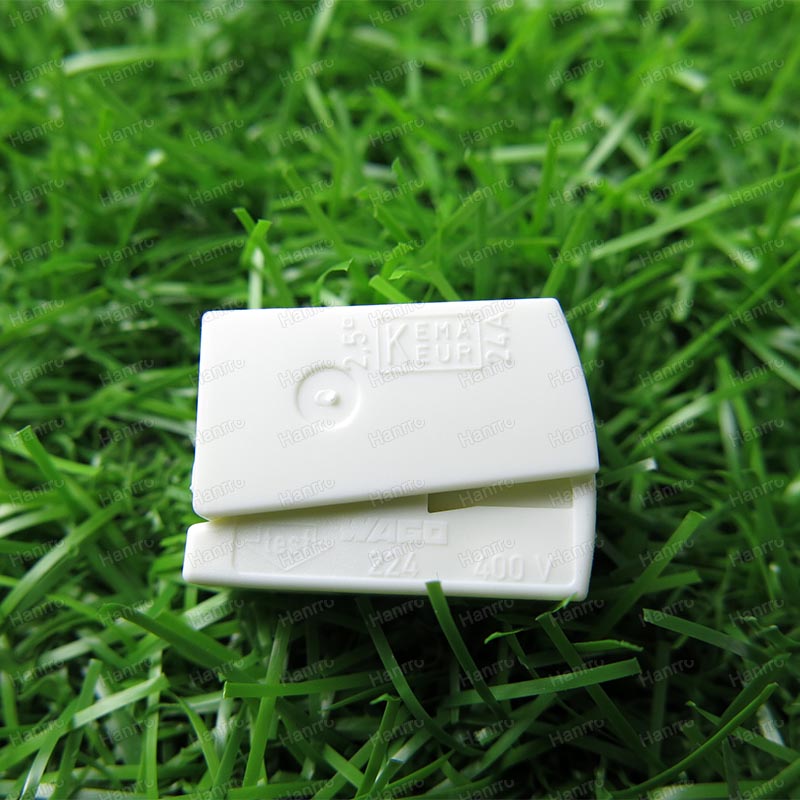

| Electrical data | |
|

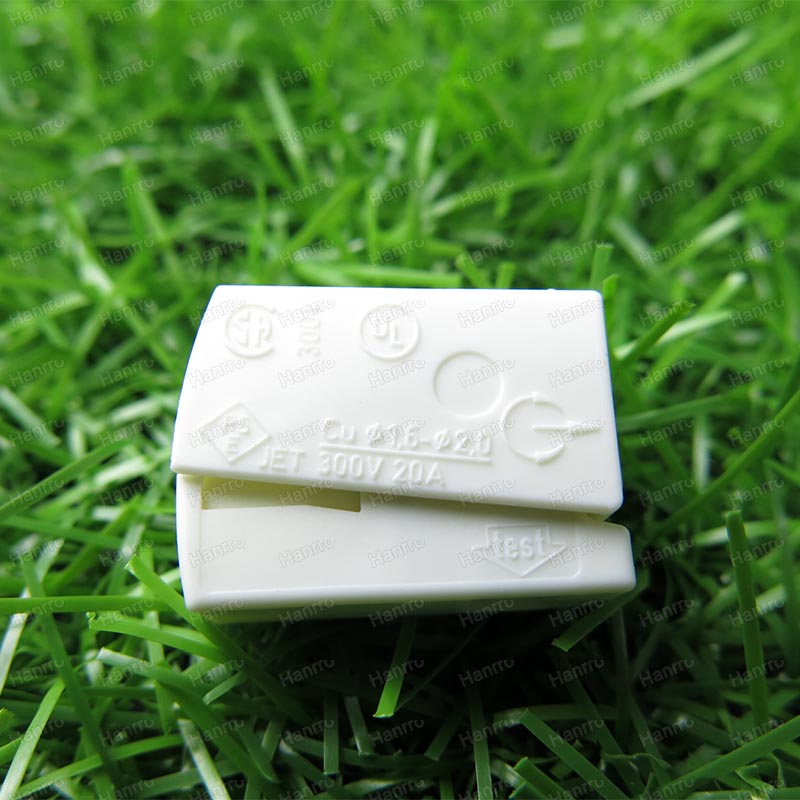

Ratings per IEC/EN 60664-1 |
|
|
Rated voltage (II / 2) |
400 V |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated current | 24 A |
|

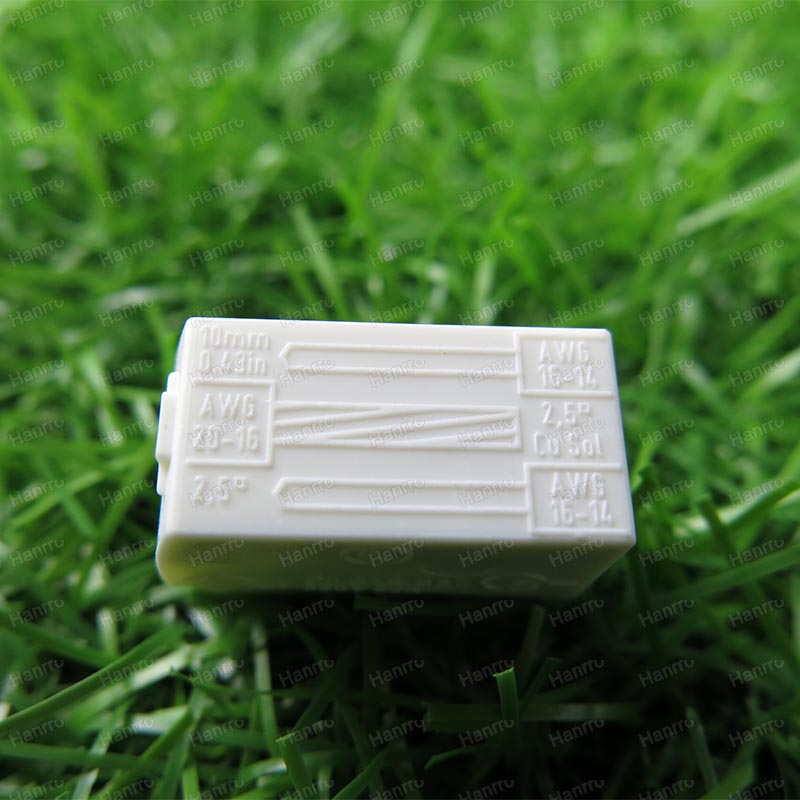

Connection data |
|
|
Fine-stranded conductor (2) |
0.5 … 2.5 mm² / 20 … 16 AWG |

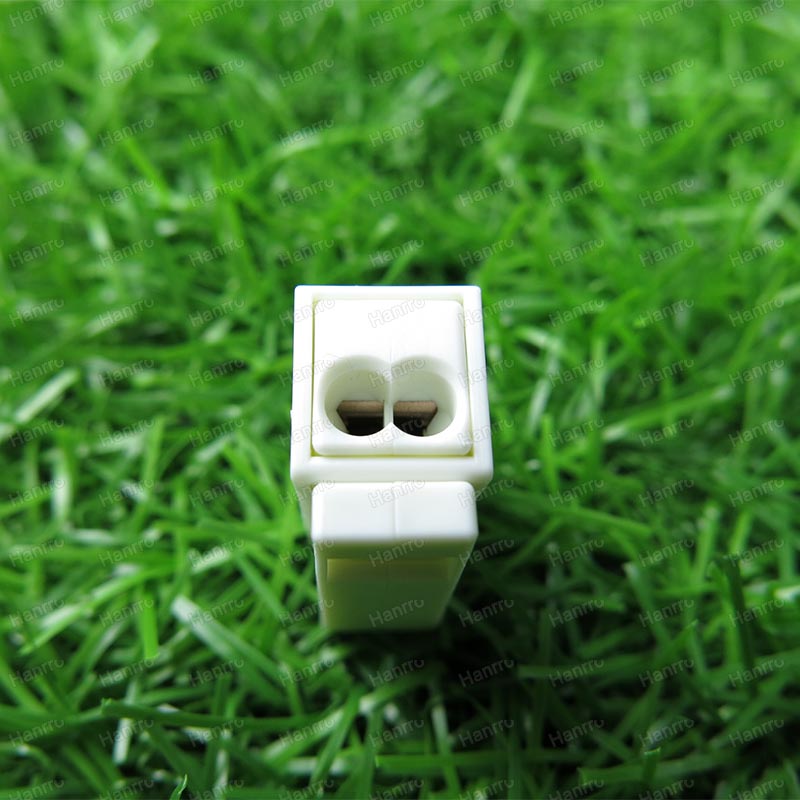

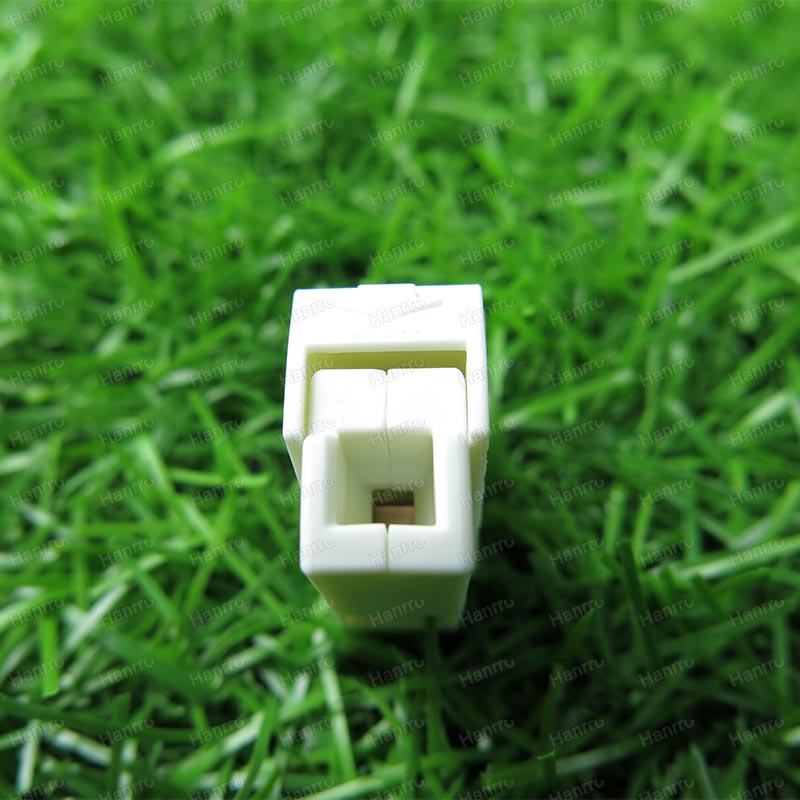

| Connection type (1) | Installation side: |
| Connection technology | PUSH WIRE® |
| Number of connection points (connection type) | 0 |
| Actuation type | Push-in |
| Connectable conductor materials | Copper |
| Aluminum | |
| Solid conductor | 1 … 2.5 mm² / 16 … 14 AWG |
| Strip length | 9 … 11 mm / 0.35 … 0.43 inch |
| Connection type (2) | Lighting side: |
| Connection technology 2 | CAGE CLAMP® |
| Number of connection points | 1 |
| Solid conductor (2) | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points | 3 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Leiterquerschnitte eindrähtig | 0.5 mm² |
| More | |
|

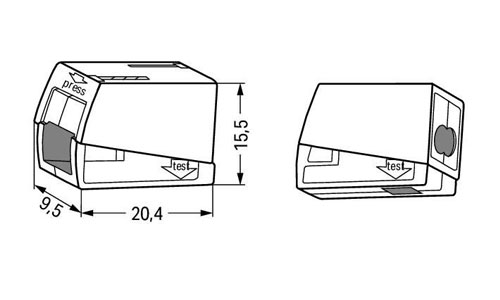

Geometrical Data |
|
|
Width |
9.5 mm / 0.374 inch |
| Height | 15.5 mm / 0.61 inch |
| Depth | 20.5 mm / 0.807 inch |
| Plug width | 9.5 mm / 0.374 inch |
|
Material Data |
|
|
Color |
white |
| Fire load | 0.046 MJ |
| Weight | 2.066 g |
|
Environmental Requirements |
|
|
Continuous operating temperature |
105 °C |
|
Commercial data |
|
|
Product Group |
7 (Push Wire Conn.) |
| Country of origin | CH |
| GTIN | 4044918583596 |
