221-505 Mounting Carrier; for 5-wire connectors for screw mounting
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

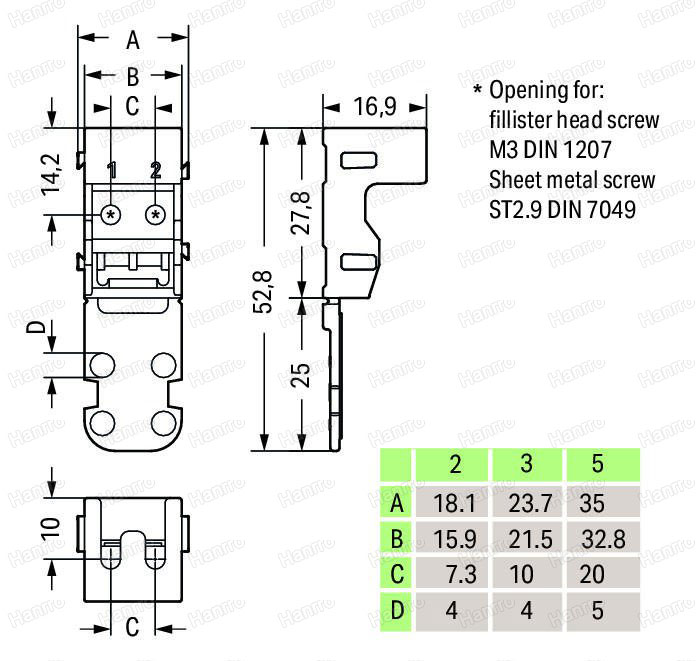

| Geometrical Data | |
|
Width
|
34 mm / 1.378 inch |
| Height from the surface | 16.9 mm / 0.665 inch |
| Depth | 52.8 mm / 2.079 inch |
| Plug width | 35 mm / 1.378 inch |
|
Material Data
|
|
|
Color
|
white/black |
| Insulating material | Polyamide 66 (PA 66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.143 MJ |
| Weight | 4.767 g |
|
Commercial data
|
|
|
Country of origin
|
CN |
| GTIN | 4055143640831 |
