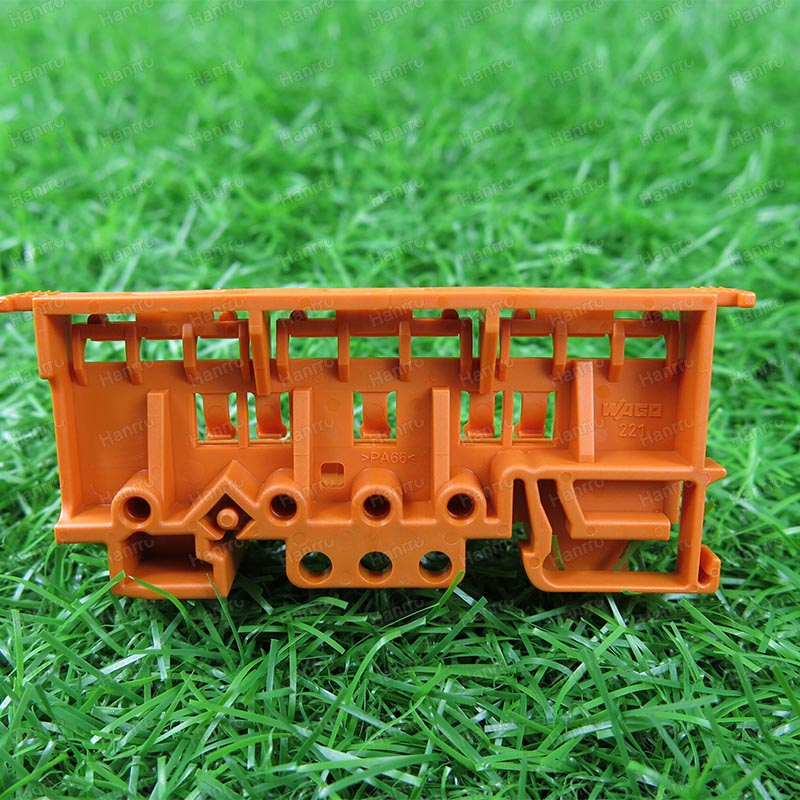

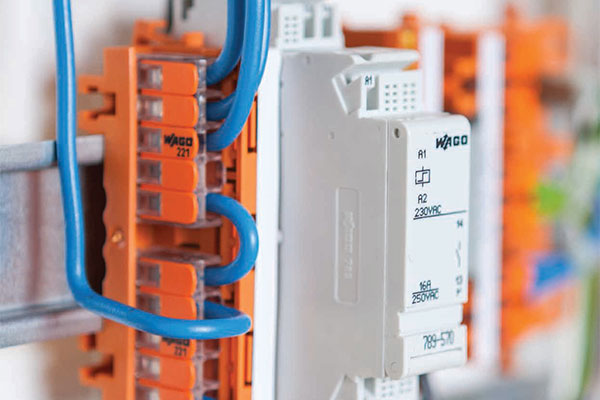

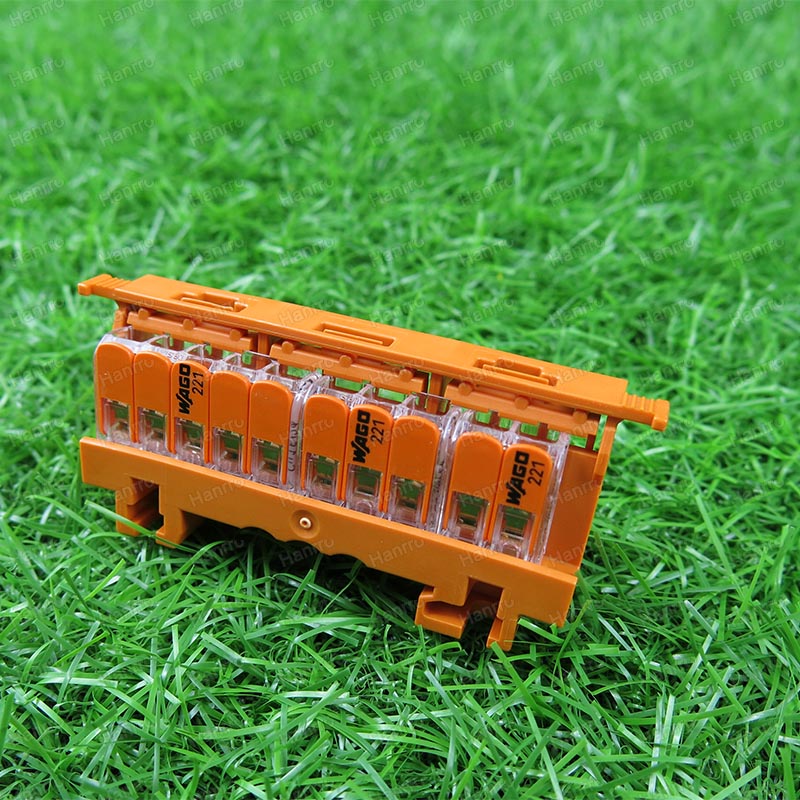

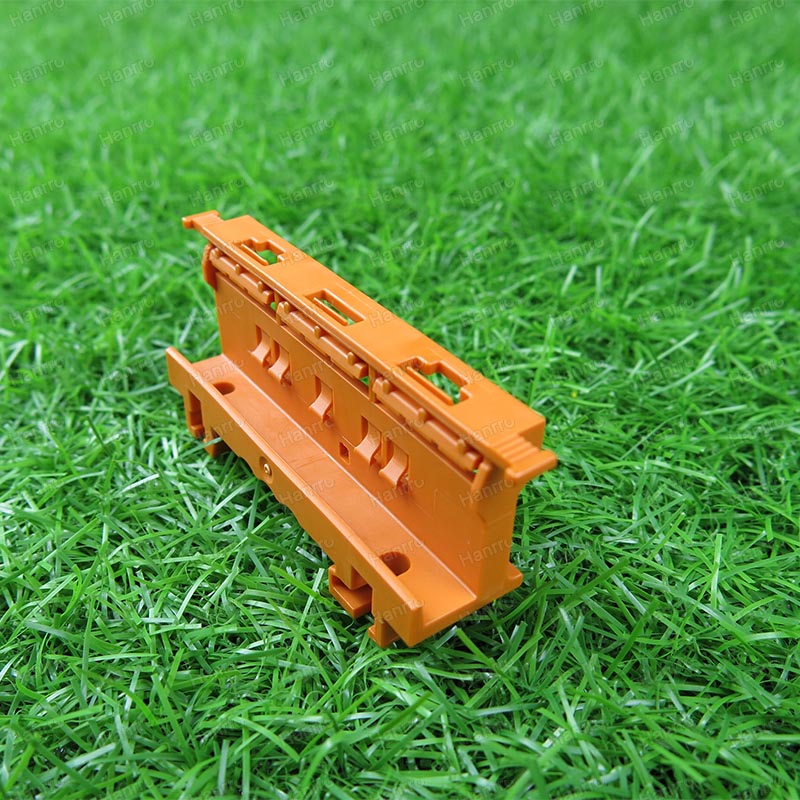

221-500 Mounting Carrier converts the compact splicing connector into a DIN-rail or chassis mounted terminal block solution. Expand installation flexibility by coupling the easy-to-use WAGO 221 Series LEVER-NUTS ，Here is advantage :

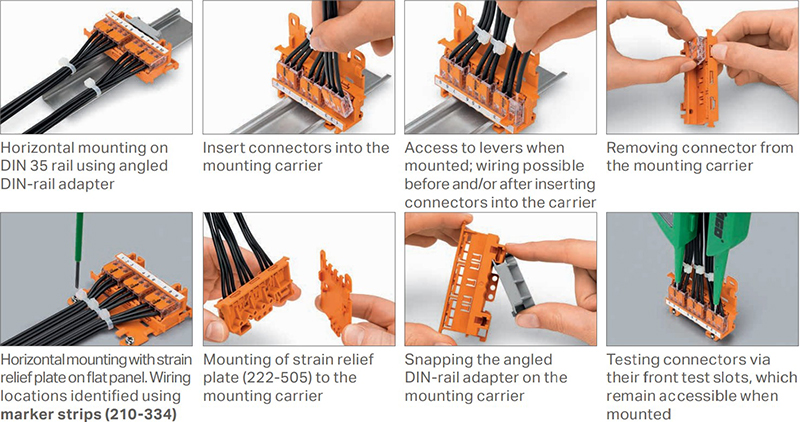

Mounting Flexibility: horizontal or vertical, snap to DIN-rail or screw mount to flat panel
Open-face Design: allows access for wiring and testing even after the connector is mounted into the carrier
Wire Management Features: multiple cable tie locations; two marking surfaces;
built-in spacing fingers for visual separation of potentials
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Geometrical Data | |
|
Width |
17.5 mm / 0.689 inch |
| Height from upper-edge of DIN-35 rail | 25.5 mm / 1.004 inch |
| Depth | 77.6 mm / 3.055 inch |
| Plug width | 17.5 mm / 0.689 inch |
|
Material Data |
|
|
Color |
orange |
| Insulating material | Polyamide 66 (PA 66) |
| Flammability class per UL94 | V0 |
| Weight | 9.57 g |
|
Commercial data |
|
|
Country of origin |
CN |
| GTIN |
