Posted on

Brass Vent Plug

Brass-Vent-Plug

Brass Vent Plug is design for venting air and preventing water intake, can be used to relieve pressure or vacuum on bearing housings, gear boxes, reservoirs, or any application where venting is necessary. Hanrro Connector’ brass air vent plugs protection level can reach IP68, offer various levels of air flow and help to equalize temperature and pressure and prevent internal condensation. Welcome to contact us for a quote or samples.

Thread Size : Metric

Material : Brass with Nickle Plated

Protection Degree : IP68

Working Temperature : -40℃ to 100℃

Posted on

Aluminum Vent Plugs

Aluminum Vent Plug

Aluminum Vent Plugs produced by our company from aluminum material should be used to prevent pressure build-up in gear systems (reducer, gearbox, etc.) and to ventilate the system.

Posted on

Stainless Steel Vent Plug

Stainless Steel Vent Plug

Stainless Steel Vent Plug is design for venting air and preventing water intake, can be used to relieve pressure or vacuum on bearing housings, gear boxes, reservoirs, or any application where venting is necessary. Hanrro Connector’ stainless steel air vent plugs protection level can reach IP68, offer various levels of air flow and help to equalize temperature and pressure and prevent internal condensation. Welcome to contact us for a quote or samples.

Posted on

Nylon Vent Plugs

Nylon Vent Plug

Nylon Vent Plugs, protect the inside equipment operation normally and long in the serious environment.

The enclosures and containers are not as durable as people think, under the influence of seals failure, condensation and contamination,

prone to leakage and structural failure.

The high quality Nylon Breathable Vent Plug from Hanrro Connector, can prevent the worst from happening.

The Nylon Breathable Vent Plug can effectively block contaminants such as dirt, dust or salts and reliably protect against water and other liquids.

Posted on

BWC Cable Glands

BWC Cable Glands

BWC Cable Glands are designed for Dry Indoor, for use with all types of SWA extruded Bending Cable. It Provides mechanical Cable retention& electrical continuity via armoured wire termination.

Material : Brass with or without Nickle Plated

Standards : B86121

Ingress Protection : IP2X

Thread Option : Metric , NPT , BSP and PG

Posted on

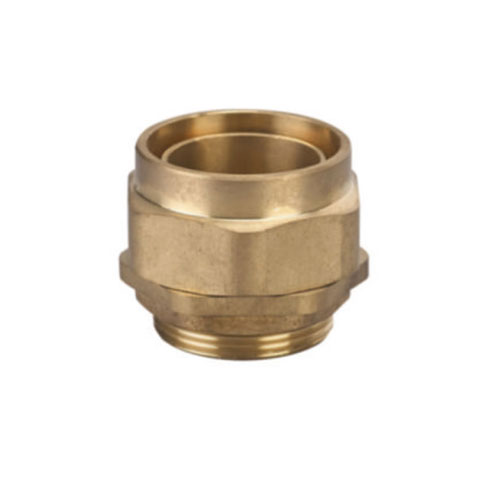

BW Cable Glands

BW Cable Glands

BW Cable Glands are used with all types of steel wire armoured (SWA) and aluminium cables.  Their design enables strong clamping of the armour wire to ensure mechanical retention and electrical continuity. Unlike CW glands, BW cable glands are designed for INDOOR use, where the electrical application does not require a weatherproof seal. BW cable glands are manufactured from high quality brass and are easy to install.  Each kit comes with gland(s), steel locknut(s) and earth tag(s). Standard and Low Smoke Fume (LSF) BW cable glands are also available. Built to BS6121 standards.

Posted on

CW Cable Glands

CW Cable Glands

CW Cable Glands are designed for outdoor use with an IP66 rating. Brass cable gland kits for use with steel wire armoured cable (SWA cables). Available in a selection of gland sizes from 20mmS to 75mm.

Standard : BS6121

Protection Class : IP66 &IP67

Temperature : -20℃ to + 80℃

Thread : Metric , NPT , BSP and PG

Posted on

PVC Shround For Cable Glands

PVC Shround For Cable Glands

PVC Shround For Cable Glands Used to minimise the risk of dirt / foreign substances gathering on the cable gland body. Hanrro manufactures a range of push on shrouds which are used to minimise the risk of dirt or foreign substances gathering on the Cable Gland body, and/or point of cable to cable gland interface

Posted on

Brass Earth Tag

Brass Earth Tag

Brass Earth Tag, installed between the Cable Gland and equipment, provide an earth bond connection as specified in BS6121:Part 5:1993 and comply with category B rating specified in IEC 62444. CMP Earth Tags have been independently short circuit tested to verify their suitability under specified service conditions. A copy of the test report is available upon request and is an important factor when selecting earth tags from any manufacturer, as without this the safety of installations may be compromised.

Stainless steel, aluminium and nickel plated brass earth tags are also available.

Posted on

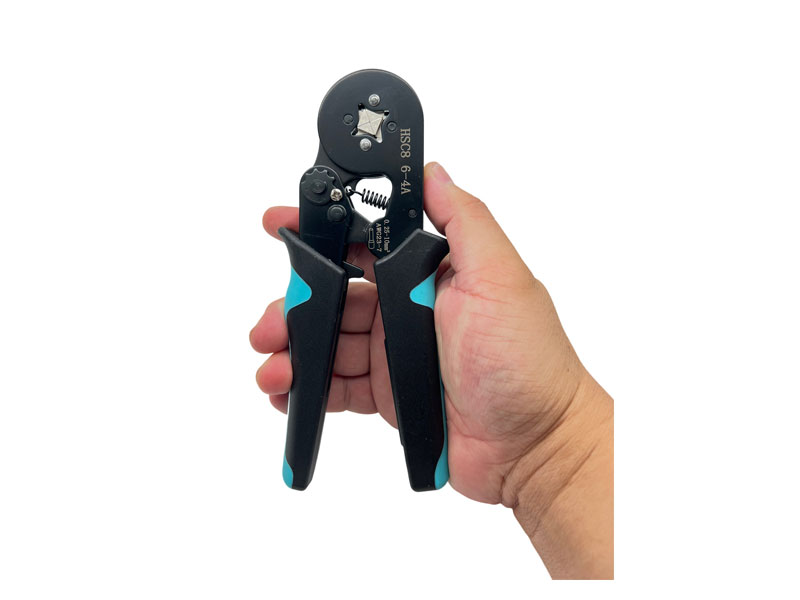

Self-Adjusting Crimping Tools HSC8 6-4A For Wire Ferrules 0.25-10mm2 Squared

Self-Adjusting Crimp Tools-Main

Self-Adjusting Crimping Tools HSC8 6-4A For Wire Ferrules 0.25-10mm2 Squared

  • [PROFESSIONAL CRIMPING TOOL] The ferrule wire crimping tool has efficient ratcheting mechanism, professional grade crimping die and ergonomic comfortable handles. This electrical tools work with wire ferrules in the range of AWG 23 – AWG 7 (0.25–10 mm²)
  • [ADJUSTABLE CRIMPING FORCE] The crimper tool has a star wheel that allows to adjust crimping height to ensure the right amount of crimping force depending on your crimping project. A designated quick release lever allows opening the crimper jaws in any position
  • [PRECISE RATCHETING MECHANISM] Wire connectors are crimped by squeezing the handle through a complete ratcheting cycle until the handle releases automatically. The ratcheting function allows securing a wire connector while you can insert the wires into the crimp
