SC Cable Lugs with Bell Mouth

SC Cable Lugs with Bell Mouth are specifically designed for ease of termination of fine stranded flexible cables. Because flexible cables tend to “splay” when the cable insulation has been removed, the enlarged cable entry provided by the bell mouth will accommodate the strand spread. Bell mouth lugs are crimped using standard tools and dies. Special bell mouth lugs are available on request.

Bell Mouth Cable Lugs made by high conductivity copper which used for code conductors One-Hole with Inspection Window Design. Seamless tubular barrel provides a consistent high performance quality crimp.

Round double thick tongue for reliable power application. And Barrel of terminal internally beveled to provide quick and easy wire insertion.

Features & Benefits :

Inspection window allows visual inspection of proper wire insertion

UL Listed and CSA Certified to 35KV and Temperature rated to 90℃ when crimped with specified Hanrro crimping tools and dies

SC Cable Lugs Surface Treatment by Tin-Plated to inhibit corrosion

December 27, 2020

Bimetallic Cable Lugs

Bimetallic Cable Lugs are designed for connecting LV, MV and HV stranded aluminium conductor cables including 11kV-33kV medium voltage .The Conductor cross section areas from 10sqmm to 630sqmm. And It used to terminate and crimp stranded aluminium cables with conductors according to BS EN 60228:2005

Bimetallic Cable Lugs are composed of two distinctive materials: the barrel of the lug is made of a fine grade aluminium alloy with purity of 99.5% and the palm is made of forged copper. Those two parts are joined together through a friction stir welding process. The barrel is filled with neutral grease to prevent from oxidisation and improve connectivity.

December 26, 2020December 27, 2020

DIN46230 Pin Terminals

DIN46230 Pin Terminals are manufactured from electrolytic copper. High-Quality electrolytic copper for good conductivity, least resistance.

Unlike the Compression Cable Lug to DIN 46235, DIN46230 Pin Terminals are not processed by hexagonal crimping, but instead by indent crimping

December 23, 2020December 27, 2020

DIN46234 Spade Terminals

DIN46234 Spade Terminals are manufactured from electrolytic copper. High-Quality electrolytic copper for good conductivity, least resistance.

Unlike the Compression Cable Lug to DIN 46235, DIN46234 Spade Terminals are not processed by hexagonal crimping, but instead by indent crimping

Hanrro erminals with grooved profiles for improved electrical contact are tin-plated to protect the terminals against corrosion. Suitable for the following nominal cross section area conductors (sqmm): 0.5-1sqmm, 1.5-2.5sqmm, 25sqmm, 4-6sqmm,

December 23, 2020

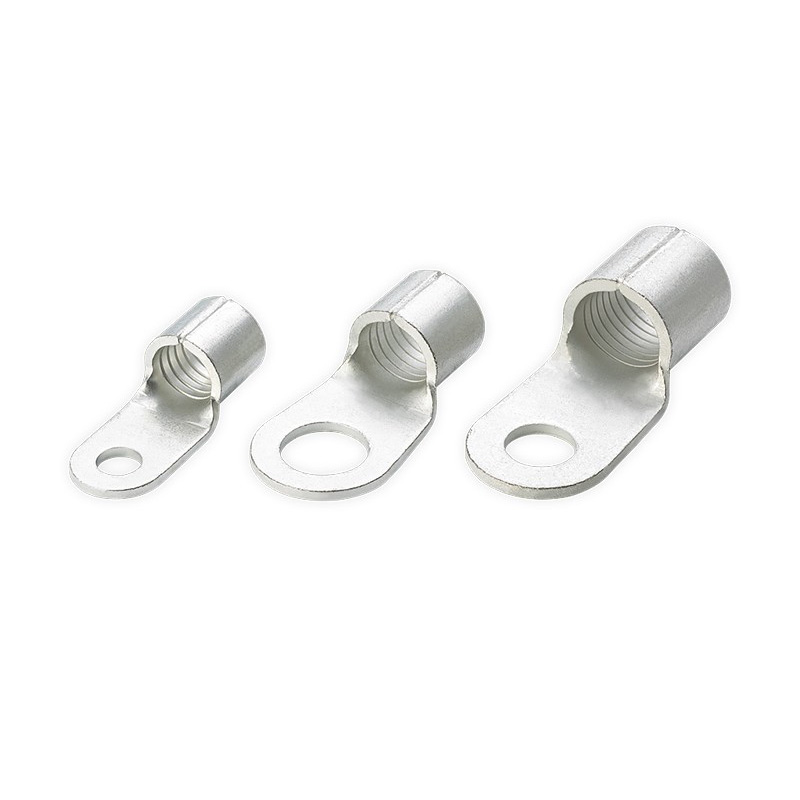

DIN46234 Ring Terminals

DIN46234 Ring Terminals are manufactured from electrolytic copper. High-Quality electrolytic copper for good conductivity, least resistance.

Unlike the Compression Cable Lug to DIN 46235, DIN46234 Ring Terminals are not processed by hexagonal crimping, but instead by indent crimping

December 16, 2020December 16, 2020

Copper Tubular Lug Terminals with Two Holes

Copper Tubular Lug Terminals with Two Holes TU2 Type have Two Holes. It made by seamless tubular barrel which provide a consistent high performance quality crimp. The Round double thick tongue for reliable power applications. Barrel of terminal internally beveled to provide quick and easy wire insertion. The Inspection window allows visual inspection of proper wire insertion

December 16, 2020

Copper Tubular Lugs TU1 Type

Copper Tubular Lugs TU1 Type have One Hole. It made by seamless tubular barrel which provide a consistent high performance quality crimp. The Round double thick tongue for reliable power applications. Barrel of terminal internally beveled to provide quick and easy wire insertion. The Inspection window allows visual inspection of proper wire insertion.
