Wagobox Light Junction Box

Wagobox Light Junction Box

Wagobox Light Junction Box is a multipurpose junction box designed for use with:
Wago 224-101 Pushwire to Cage Clamp Connector
Wago 224-112 2x Pushwire to Cage Clamp Connector
Wago 260 Modular Cage Clamp Terminal

The quick action cable grippers can grip cables up to 8mm in diameter. The Wagobox-Light has fast fit slide action mounting points so the box can be fixed to a surface after the connectors have been fitted into the box by using the Wagobox mounting button (sold separately). The Wagobox-Light is rated up to 400V and can support cable sizes from 0.5mm to 2.5mm. Maximum connector capacity is 4 x 224-112 or 4 x 224-101 connectors. The maximum number of supported individual conductors is twelve when using four 224-112 connectors.

Colour: Grey

Ingress Protection: IP2X

Weight 28g (each) 220g (pack)

Cable sizes 3x 1.5mm² Twin & Earth or 3×1.0mm² Twin & Earth flat solid core to

1×0.5mm² — 1×1.5mm² flex

Overall Cable Diameter 3.0mm to 8mm

Dimensions for single junction box: 39mm x 29mm x 95mm

Current rating Up to 24A

Voltage rating 400V / 4KV

Maximum connector capacity 4 x 224-112 or 4 x 224-101 connectors

Posted on

WAGO Junction Box

Wagobox Electrical Junction Box

WAGO Junction Box for use with the 222 and 773 series wiring connectors. Provides a neat, compact protective housing for Wago connectors. Suitable for use with up to 6 cables, the compact size of 39mm x 44mm x 108mm allows it to fit in hole sizes with a 60mm diameter. Ideal for use in lighting applications with recessed downlights.

The Wago iPCC junction box is rated up to 400V and can support conductor sizes from 0.08mm2 to 6.0mm2.

Cable sizes 3 x 6.0mm² Twin & Earth or 4 x 4.0mm² Twin & Earth or 6 x 1.0, 1.5 or 2.5mm² Twin & Earth or 6 x 1.0 or 1.5mm² 3-core & Earth

Current rating Up to 41A

Voltage rating 400V / 4KV

Material : PP

Color : Grey , White and Red

Flammability Rating : UL94V-2

IP Rating : Max IP2X

Fixing : Screw Directly Fix or Special Mounting Button

Weight : 46.2 g

Dimension : 39 x 44 x 108 mm

Posted on

Battery Lug Crimpers with Telescopic Handles

Battery Lug Crimpers

Battery Lug Crimpers with Telescopic Handles are engineered to provide the most complete crimp on all major brands of connectors, Which inculde Copper Battery Lugs and Aluminum Lugs From 6-300mm2.

JT-150 Crimping Dies : 10, 16 , 25, 35, 50 , 70 , 95 , 120 , 150mm2

JT-300 Crimping Dies: 16 , 25, 35, 50 , 70 , 95 , 120 , 150 , 185 , 240 , 300mm2

Posted on

Cable Lug Crimping Tools

Cable Lug Crimping Tools

Cable Lug Crimping Tools are designed for Crimping copper or aluminum connectors and lugs, and flag terminals, from 8-2 gauge with this mechanical indent compression tool. A good tool for bench crimping. Tool can easily be operated while resting head on work bench.

It provides a more precise crimp than non-calibrated heavy duty crimpers. Has 4 rotating dies to match your wire size between 8-2 gauge. Made of steel for durability

Posted on

Waterproof Wire Connectors

Waterproof Wire Connectors

Waterproof Wire Connectors can be used wherever wet or corrosion exists. With its silicone filled twist-on cap, and one-step installation, it eliminates the need for time-consuming measures like tape, heat shrink, mastics or corrosion kits. Simply insert the wires and twist, and you can rest assured you have a well-insulated waterproof seal.

MAXIMUM RATE VOLTAGE

600 Volts

INSTALLATION INSTRUCTIONS

Ensure any frays in the wire are straightened. Place stripped wires together and twist connector onto wires, pushing firmly until snug. Do not over tighten.

FEATURE

The unique twist-on Waterproof Wire Connectors are pre-filled with silicone sealant to make it simple to waterproof splices and protect against corrosion. The product is easy to install, and eliminates the need for using time-consuming products like heat shrink, tape, mastics and corrosion kits. Easy Seal Wire Connector

Orange : #18-#6

Blue : #20-#12

Ivory : #22-#14

Posted on

Heavy Duty Crimp Tools

Heavy Duty Crimp Tools

Heavy Duty Crimp Tools that delivers a professional Hex type crimp. They are Ideal for double crimping long lugs. The Hex jaws can be easily rotated to suit 8 different lug sizes

Feature :
Heavy Duty Crimp Tools for copper tube terminals

Hexagonal crimping with movable and revolving dies.

Multiple rotating dies build into head, easy to select correct size.

Long handles minimise the effort required to produce a perfect crimp.



Posted on

Heavy Duty Crimping Tools

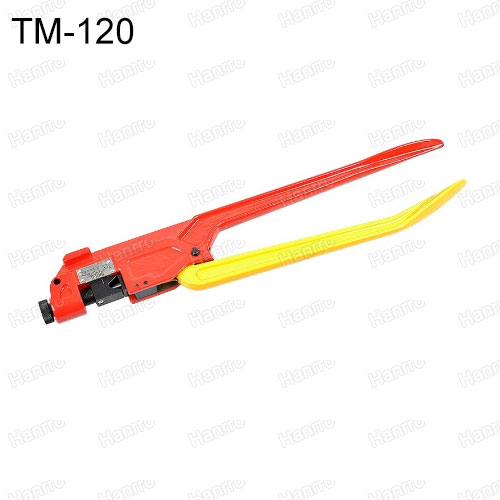

Heavy Duty Crimping Tools-TM-120

Heavy Duty Crimping Tools are perfect for the casual user or those on a tight budget that still seek a professional finsh.

Heavy Duty Crimping Tools are the best crimping solution for tinned terminals. It’s lightweight and easy operation allows for simple termination of cable lugs from 8 AWG to 250 MCM copper and 8 AWG to 4/0 aluminum.

Features:

  • Two capacity plates – aluminum and copper
  • Crimps terminals from AWG 8 to 250 MCM
  • Adjustable w/ knob on top of tool

Specifications:

  • Length: 22.5in
  • AWG Application: 8, 6, 4, 2, 1/0, 2/0, 3/0, 4/0
  • DIN Application: 10, 16, 25, 35, 50, 70, 95, 120mm2
  • JIS Application: 8, 14, 22, 28, 60, 70, 80, 100mm2
