SC Cable Lugs

SC Cable Lugs made by high conductivity copper which used for code conductors One-Hole with Inspection Window Design. Seamless tubular barrel provides a consistent high performance quality crimp.

Round double thick tongue for reliable power application. And Barrel of terminal internally beveled to provide quick and easy wire insertion.

Features & Benefits :

Inspection window allows visual inspection of proper wire insertion

UL Listed and CSA Certified to 35KV and Temperature rated to 90℃ when crimped with specified Hanrro crimping tools and dies

SC Cable Lugs Surface Treatment by Tin-Plated to inhibit corrosion

FAQ :

Question : What is the material ?

Answer : There are four different materials for choice

Best : T2 , 99.9% Copper , Few Manufactures use it Due to Expensive

Good : T3 , 99.7% , Almost 50% Manufactures use it Due to Reasonable

Common : Normal Copper , 20% Manufactures use it Due to Cheap

Bad : Brass , Special for Online Business , Such as Aliexpress , Ebay

Most of Customers pay more attention Price than Quality

Question : How many types of SC Cable Lugs ?

Answer : If We sort by Size , There are three different types

Heavy Duty SC Cable Lugs , Standard SC Cable Lugs , Economy SC Cable Lugs

Heavy Duty Type usually be used in High Current Application Due to Thicker

If We sort by Hole ： With Inspection Hole , Without Inspection Hole

Besides There are special types which have bell-mouth for wire easy insert

Question : What is the Thickness of SC Cable Lugs ?

Answer : Our Treatment of Surface will be Tin Plated up to 3-5um

For Special Requirement , We can also do 8-10um , 13-15um and 20-25um

Question : How to crimp these SC Cable Lugs ?

Answer : As Customers know that The Sizes from 4-630mm2

4-16mm2 : Hand Crimping Tools or Pneumatic Crimping Tools be best

16-120mm2 : Heavy Duty Crimping Tools or Hydraulic Crimping Tools be best

150-630mm2 : Hydraulic Crimping Tools or Special Puncher be best

October 5, 2018November 1, 2020

Tubular Cable Lugs more commonly used than the DIN compression cable lugs are the so-called standard tubular cable lugs. These are also made from electrolytic copper and are offered by various manufacturers. Tubular cable lugs have different dimensions and lengths to DIN cable lugs – as a rule, they are shorter than DIN compression cable lugs and have different tube dimensions.

However, the shorter tube has no negative impact on the durability of the electrical and mechanical connection. Due to the modified tube dimensions, it is not generally possible to process all conductor classes to DIN EN 60228. With hexagonal crimping, only multi-stranded conductors can usually be processed with the tubular cable lug. This is down to the properties of fine-stranded conductors. With indent-like crimp profiles, it is also possible to crimp fine-stranded conductors. Other crimp profiles can be used, and these will be described in more detail in the chapter called “Crimp profiles at a glance”. Multi-stranded, sector-shaped conductors can, of course, also be processed in these cable lugs. This requires the conductor to be pre-rounded with the appropriate sleeves and round crimping dies. Unlike DIN compression cable lugs, the advantage of the tubular cable lug lies in the manufacturing costs. Less copper is required for tubular cable lugs, and this is reflected in the procurement costs.

Unlike DIN compression cable lugs, tubular cable lugs have no crimp markings due to the various crimp profiles. The required number of crimps can be obtained from the relevant manufacturer. With Hanrro, you can find the required number of crimps in the technical appendix in the catalogue, for example. Of course, the tubular cable lug is also available as 45° and 90° angled versions and as connectors with the same properties in processing.

October 9, 2018

Copper Cable Lugs

Copper Cable Lugs are connecting devices used primarily for
terminating and joining cable and wire conductors in electrical
installations and equipment.
In general, Copper Cable Lugs are fixed to the cables and wires by
inserting the conductor/s into the “barrel” (tube) of the device and
then “crimping” (squeezing) the “barrel” onto the conductor/s to
form a secure mechanical and electrical joint.
The devices are manufactured in a number of different designs and
made from high conductivity copper (tin plated) to suit
various cable and wire types and specific installation requirements.
Careful consideration must be given to selecting the right product
for an application and the following information will assist in making
the correct choice.

Features & Benefits

Inspection window allows visual inspection of proper wire insertion

UL Listed and CSA Certified to 35KV and Temperature rated to 90℃ when crimped with specified Hanrro crimping tools and dies

Copper Cable Lugs Surface Treatment by Tin-Plated to inhibit corrosion

October 6, 2018

DIN46235 Cable Lugs

DIN46235 Cable Lugs also named by DIN 46235 Compression Lugs which is sutiable for electrical connection. DIN standards are manufactured and supplied by Hanrro with utmost quality and are tested for at National Testing House (NTH), Mumbai as per IEC 61238-1-2003 Standards

DIN Standard Lugs comprise of copper lugs of various dimensions and are made from the purest copper to ensure best electrical connectivity between the wires/cables and devices

We have gained the expertise in offering High Voltage DIN 46235 Cable Lugs Terminals 33 KV that complies with electrical specification and are in accordance with the general requirements. In the terminals, we use Compression joints that are as per BS 4579 part 11970 (1988). Our clients can avail these at competitive prices.

Features & Benefits

These terminals are designed for high voltage applications upto 33kv

They are manufactured from high purity copper tube & tin plated

The extended barrel enhances both electrical and mechanical performance.

The absence of an inspection hole to prevent moisture entry into the crimped joint makes these terminals suitable for outdoor applications.

October 26, 2018March 27, 2019

Cable Tie Gun

Cable Tie Gun For Nylon Cable Ties Up to 4.8mm in Width

With its lightweight, ergonomic design, the NCTG-1 cable tie gun is an ideal tool for applying the self-locking cable ties. Although it is used for applying cable ties, But It enables work to be carried out without operator fatigue.

For easier handling the tensioning is fully adjustable by means of a quick four level control with an additional fine setting. This feature means that damage to the bundled materials is easily avoided. The cable ties are automatically cut off flush with the head when the preset tensioning level has been reached.

General Information

Item No : NCTG-1

Material of Body : Aluminum Alloy

Material of Handle : TPR

Color of Body : Red

Weight : 0.38 KGS

Length : 168mm

Working Range : From 2.2mm to 4.8mm in Width of Nylon Cable Ties

October 25, 2018March 26, 2019

Stainless Steel Cable Tie Gun

Stainless Steel Cable Tie Gun is designed to tensioning and cutting Stainless Steel Cable Ties. It can be used in Heavy Duty Bundling Application

For instance, a cable tie gun must even have to be usable in areas which are hard to reach, while other cable tie guns have to be able to operate during field operations without any access to electricity. To this are added the demands of modern serial production, meaning that, for example, attention already has to be paid while developing cable tie guns to ensuring that during long-term use, the operation of the cable tie gun is reliable and does not place excessive demands on the user.

General Information

Item No : SSCTG-1

Color : Grey

Material of Body : Tool Steel

Material of Trigger : TPR

Features & Benefits :

Easy Positioning and One Handed Operation

High Quality Construction For a Long Service Life

Suitable for cable ties 4.6mm to 7.9mm width ,Thickness less than 0.3mm

Automatically tensions & cuts in one operation

October 31, 2018

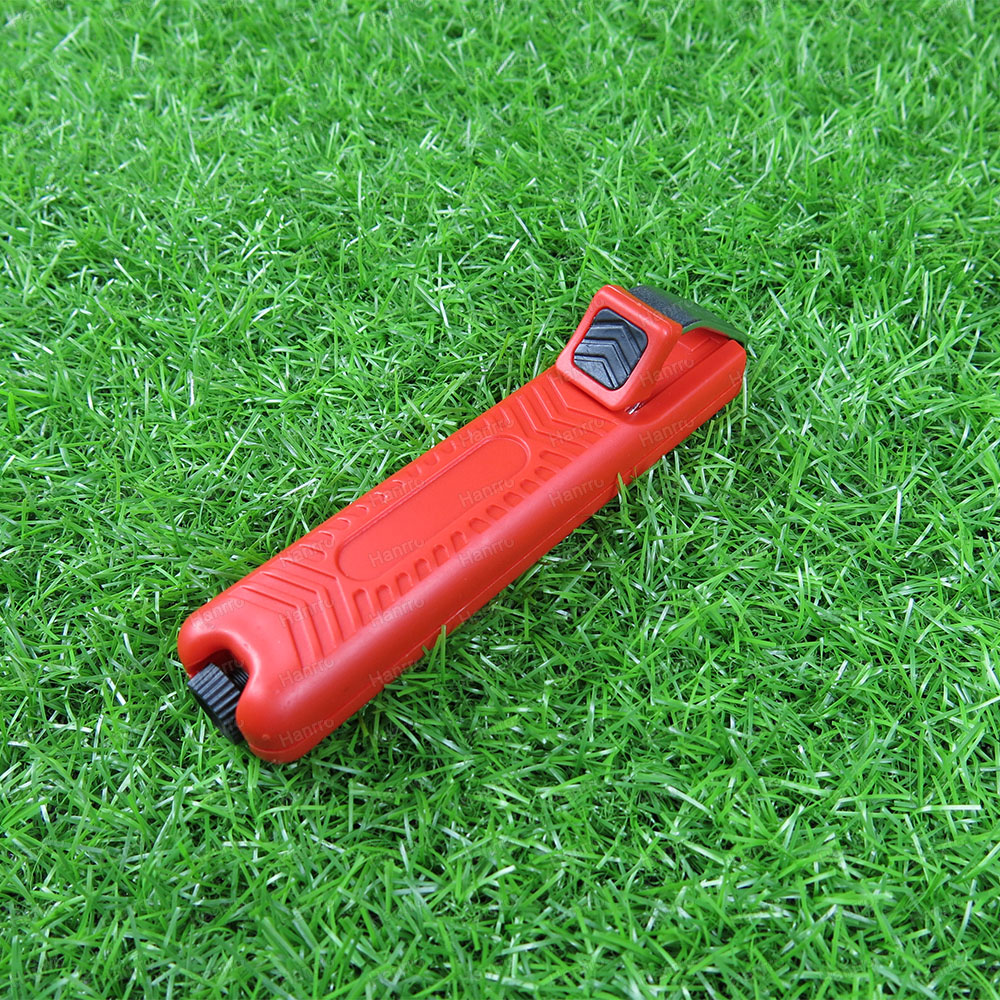

Economy Cable Dismantling Tools

Economy Cable Dismantling Tools are made by special plastic , plastic, impact-proof. Which For stripping all common round cables from 4-50mm. Secure grip due to soft component material on handle and holding lever to avoid slipping

Features & Benefits :

Self-tightening holding lever

With adjusting screw for cutting depth adjustment

Turnable blade for circular and longitudinal cutting

Spare blade inside the handle

CDT-A6 with Knifes & Hook Blade for moving cable ties from cables

For Knipex Type , Please visit : Knipex Type Cable Dismantling Tools

October 6, 2018March 26, 2019

Cable Lugs

Cable Lugs also referred to as Compression Lugs or Cable Connectors are electrical supplies utilized to securely connect or terminate cables to electrical devices, power or control panels, junction boxes, equipments and machineries. These copper cable lugs are often used to join power cables together as well. Cable Lugs intended to ensure the safety of both the appliances and human beings. These lugs can be uniquely engineered according to the client’s preferences and requirements.

An electrical cable carries electric current to equipments, machineries, power or control panels, junction boxes and various electrical devices depending on the cable size and capacity to carry electrical current. Proper termination and connection of these cables are as important as an improper connection that may result to short circuit or leakage and lead to costly damage to machines or even the user. The method of proper terminating of power cable is done by safely and securely linking the leading end of cable to the bus bar inside the panel or junction box or into the input point of the machine or equipment.

The functionality of a cable lug is one of the most safe and common method of cable termination. It is designed in a way that cable termination and removal for maintenance or repair is very simple, thus a cable lug is broadly used instead of direct fastening methods. It is also utilized by almost electrical equipment even in manufacturing of tires for vehicles, drums and many others. The various types of lugs consist of terminal lugs, tube lugs, fork lugs, bi metallic lugs and aluminum tubular lugs. The option for the material used in cable lugs depends on the type of the cable. Electrical cable lugs can be used on automobiles as the role of lugs for efficient performance of the machines is highly indispensable as well as in electrical boxes, transformers and generator machines.

For 45 Degree , Please refer to 45 Degree Angled Cable Lugs

For 90 Degree , Please refer to 90 Degree Angled Cable Lugs

October 29, 2018

Knipex Type Cable Dismantling Tools

Cable Dismantling Tools are designed for dismantling round cables exceeding 25.0 mm dia. It can Removes all sheaths of standard cables. Special Designed Suitable for longitudinal and circular cutting, Cutting depth can be adjusted up to 5.0 mm.Replaceable blade (both sides can be used).

General Information :

Item No : CDT-PG5

Material of Body : Fibreglass-Reinforced Polyamide

Color of Body : Black & Red ( Special Color will be done as Requirement)

Length : 150mm

Weight : 0.21 KGS

October 15, 2018

Non Insulated Wire Ferrules

Non Insulated Wire Ferrules to prevent wire ends from fraying or breaking. The tin-plated copper tubes make for an easy mating point with terminal blocks

It can also ensure that you get 100% conductivity when inserting your terminated wire into the connection you are working with. For example- a terminal block or trailer receptacle and plug with pressure plated setscrews.

For Vinyl Insulated , Please visit : Vinyl Insulated Wire Ferrules

For Twin , Please visit : Twin Wire Ferrules

For Nylon Insulated , Please Visit : Nylon Insulated Cord End Terminals

For Dual Entry , Please visit : Dual Entry Cord End Terminals
