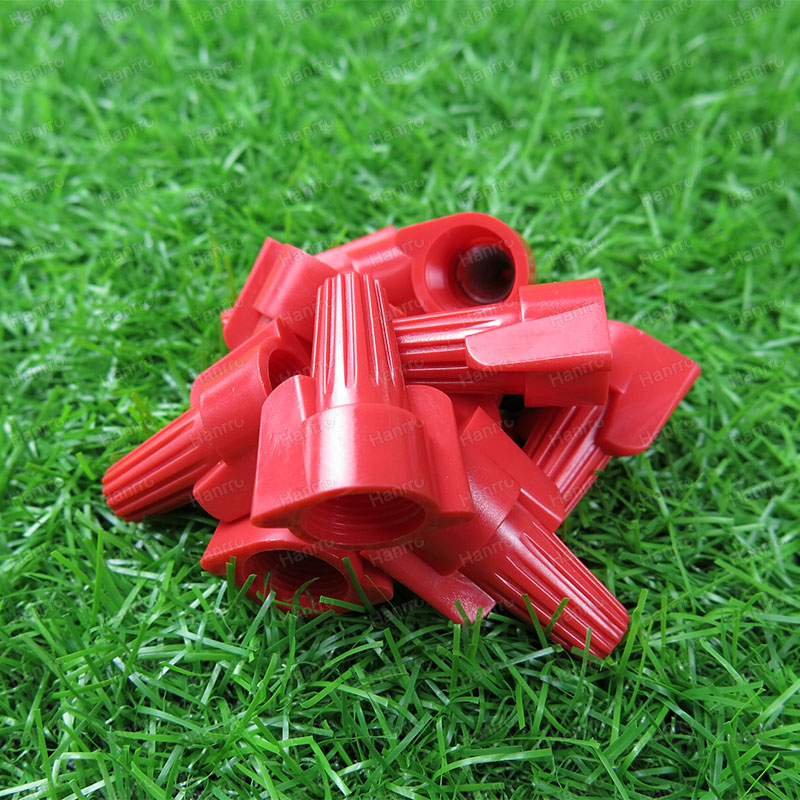

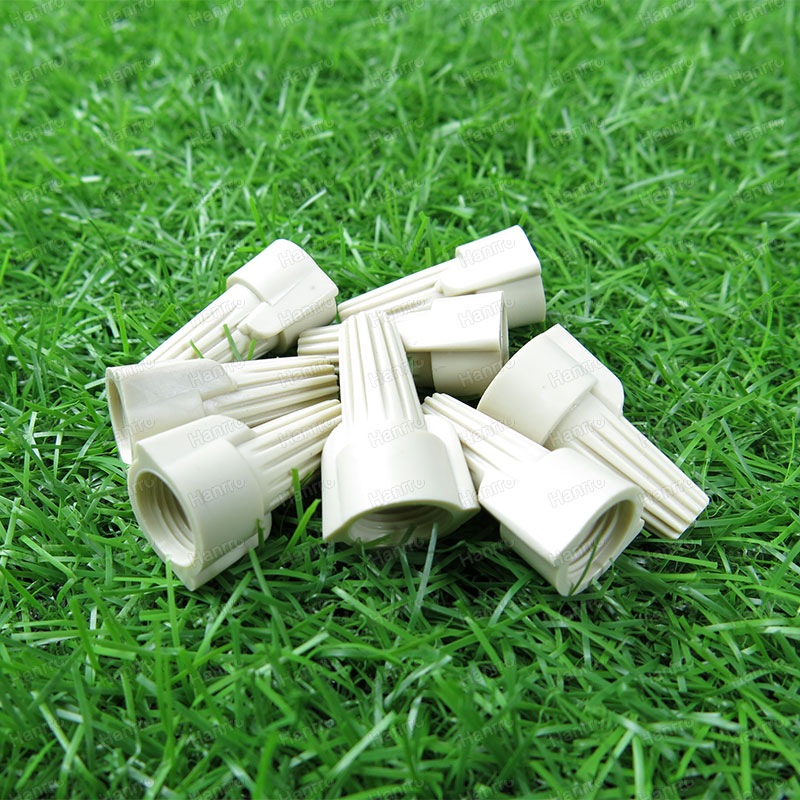

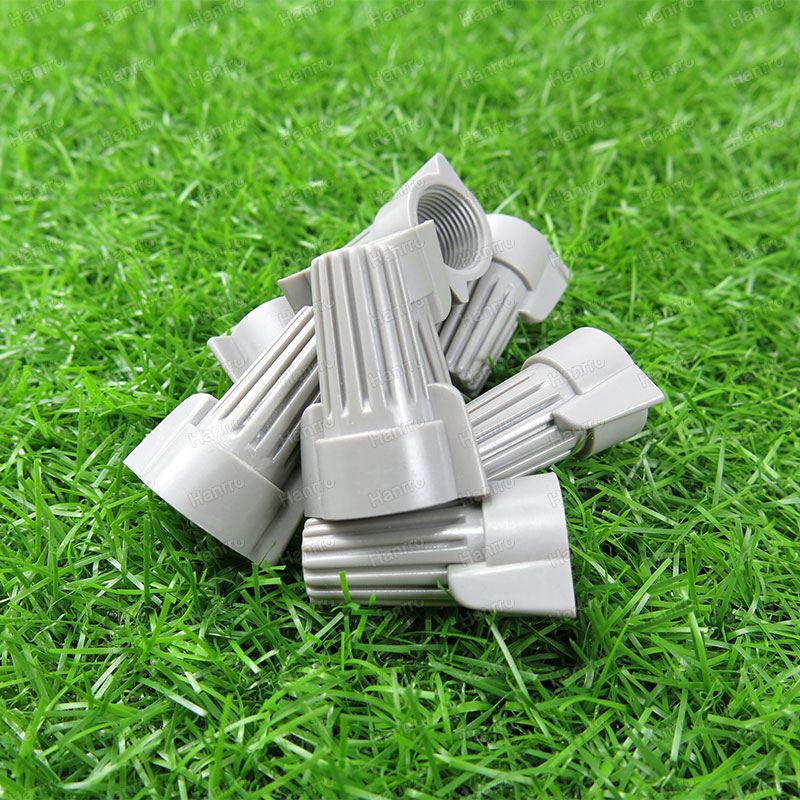

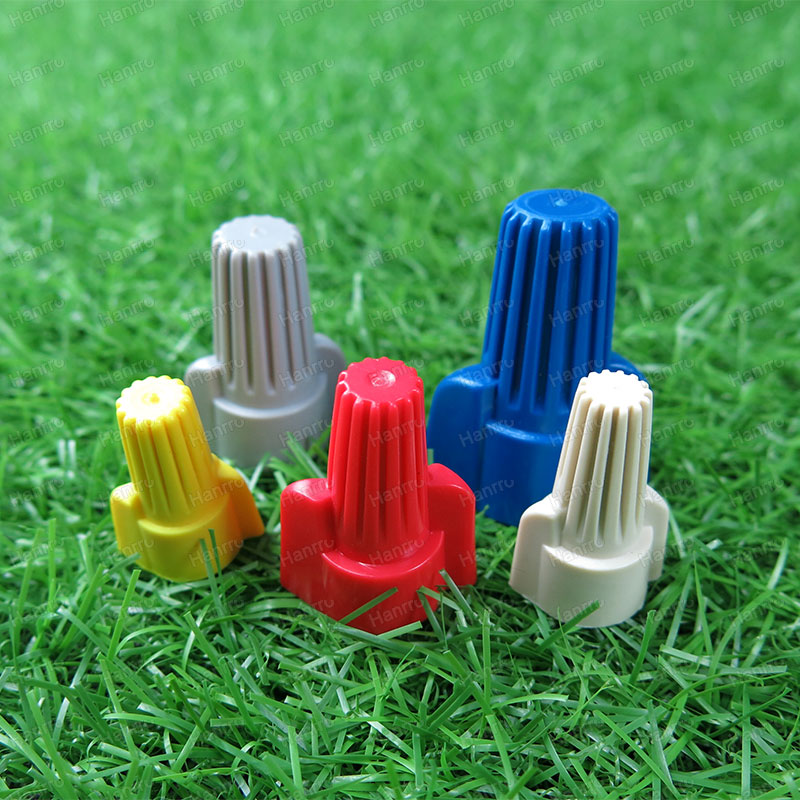

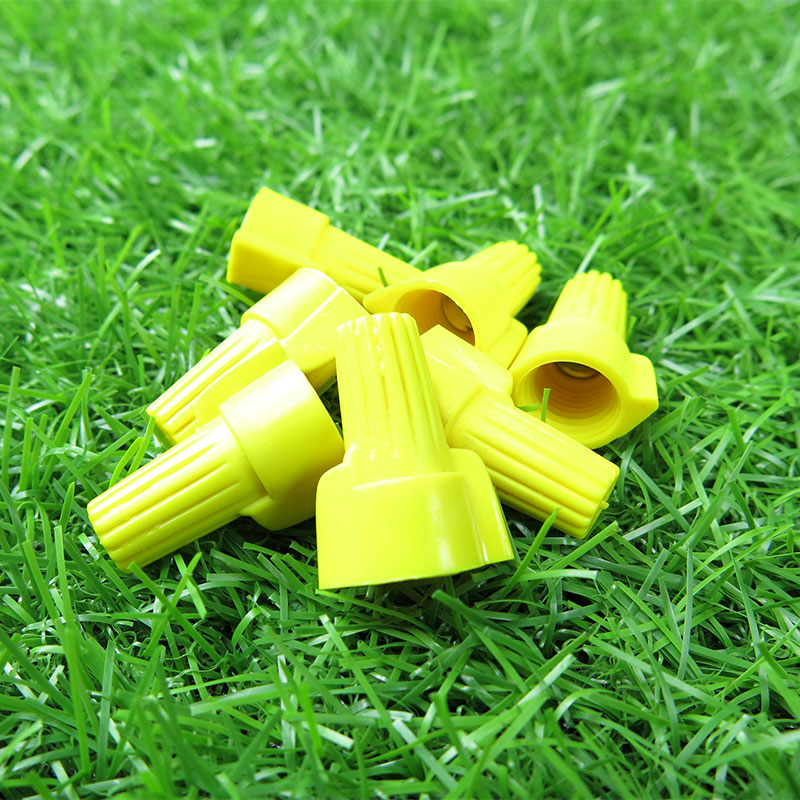

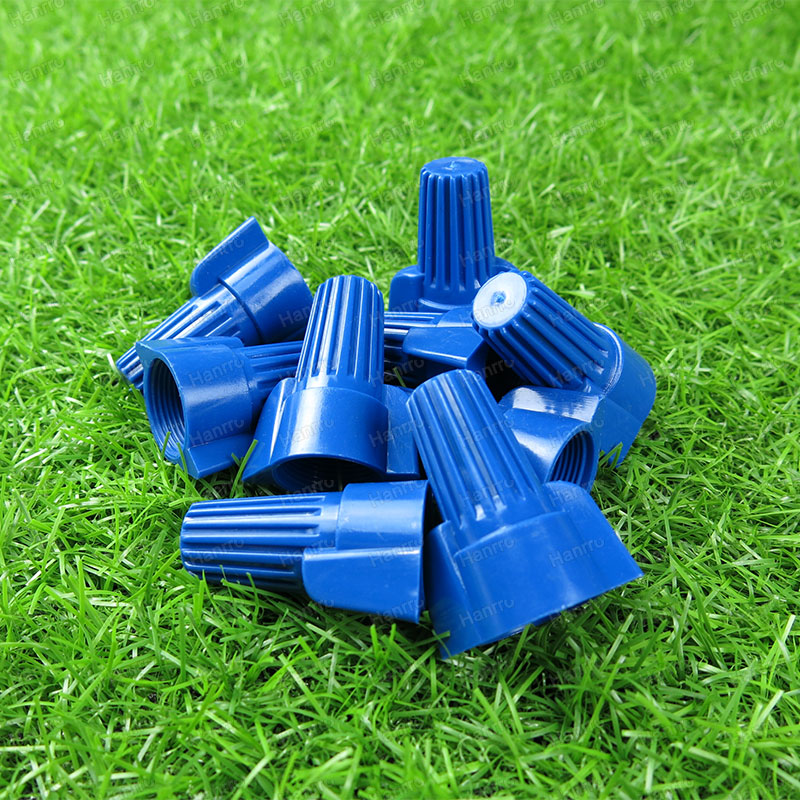

WingGard Twist On Wire Connectors

WingGard Twist On Wire Connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force

WingGard Twist On Wire Connectors with a wide spring opening facilitates easy and fast insertion of large wire combinations. This hex-head connector is capable of a 1-conductor termination. It is also suitable for 2 or more conductor connections in a pigtail application. The insulator is manufactured with a flame-retardant PVC.

WingGard Twist On Wire Connectors features a steel spring with corrosion-resistant coating and a durable PVC insulator. The molded insulator resists warping and expansion when pushed to the upper limits of its wire ranges. The connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and CSA Certified.

Features & Benefits :

Wings are knurled for a sure grip and offset from centerline for greater twisting leverage

Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice

Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit

High-dielectric shell features deep skirt design to prevent exposure of bare wire

Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs

Copper to copper connections only

For Economy Type , Please visit : Screw On Wire Connectors
