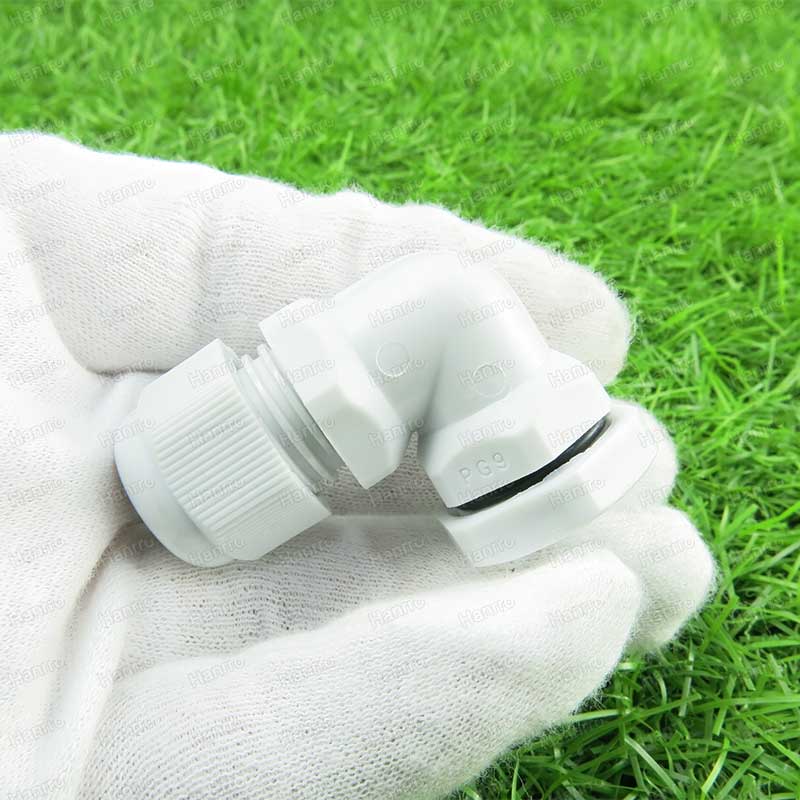

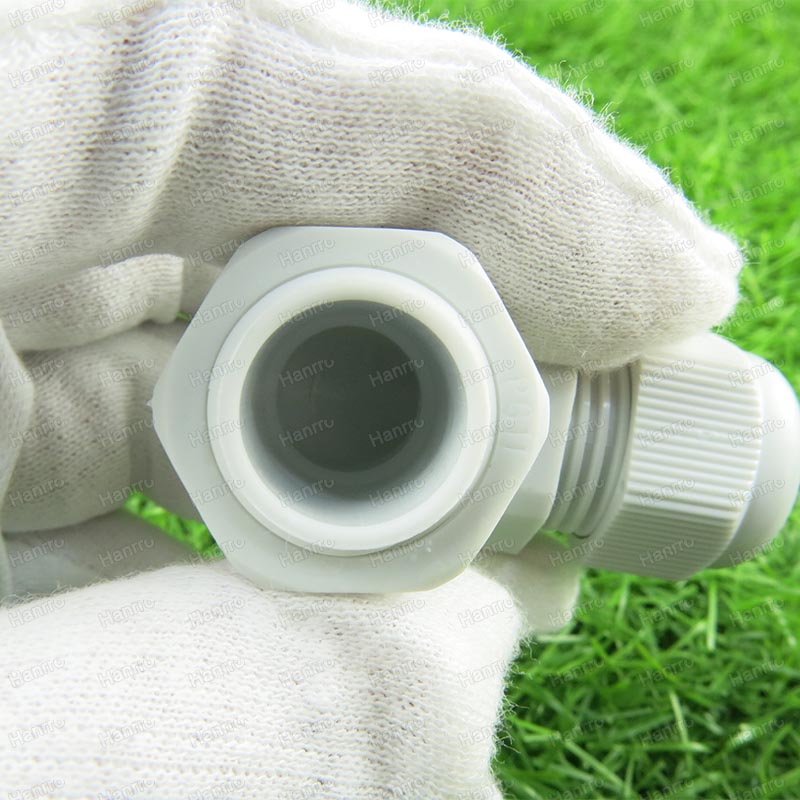

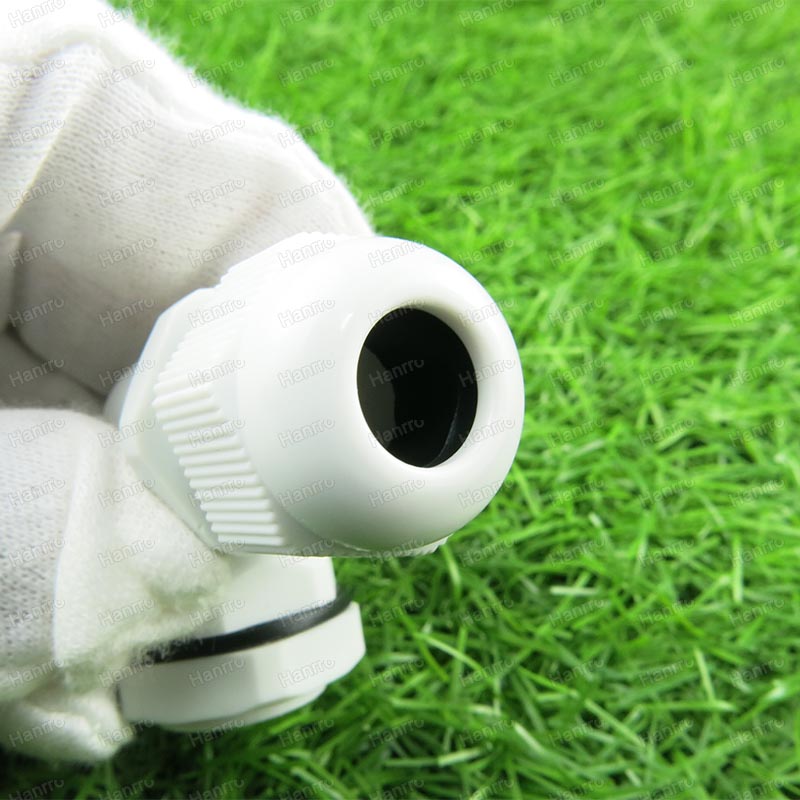

Right Angle Cable Glands also known as 90 Degree Cable Glands or 90 Elbow Cable Glands which are perfect in tight space applications. Liquid tight right cable glands offered by Hanrro are perfect where liquids and moisture are present at the cable egress point. Cable glands provide excellent strain relief and protection to the wire or cable.
Product Name : Right Angle Cable Glands
Material of Body : Halogen Free Nylon 6

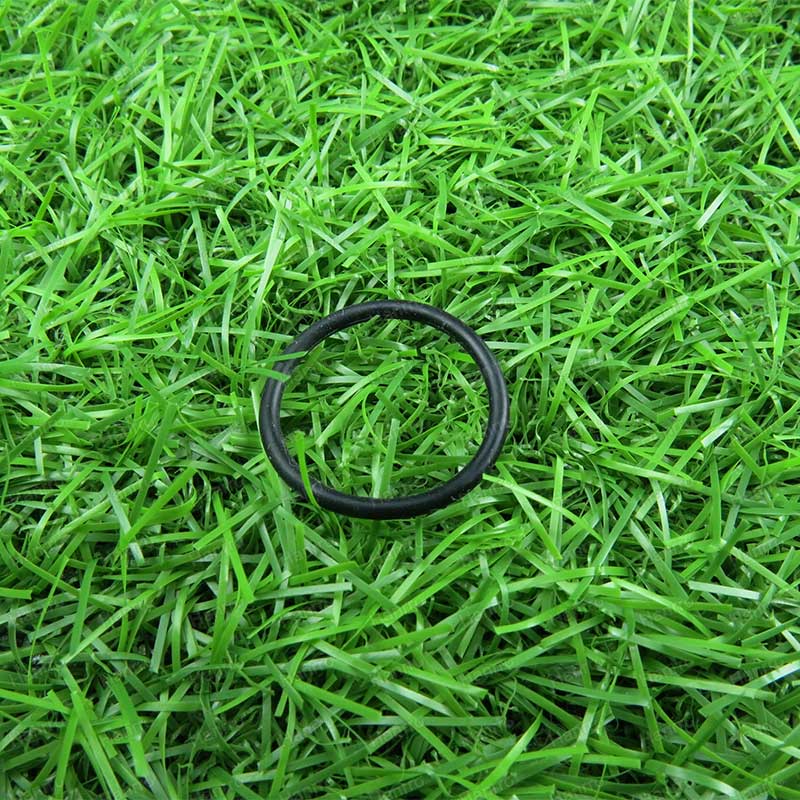

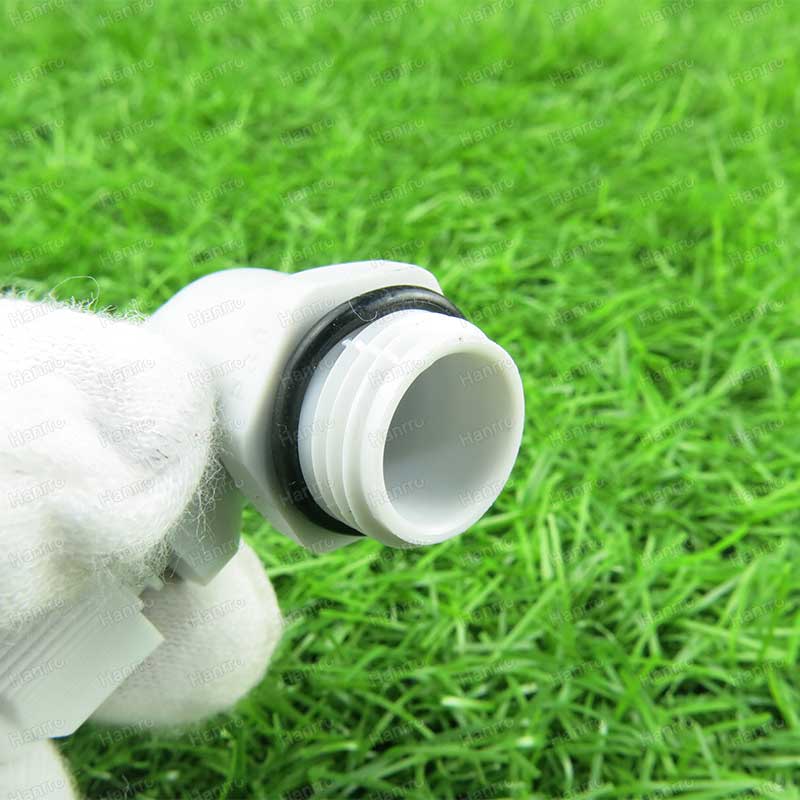

Material of Sealing : Neoprene or EPDM
Color : Grey , Black , White , Red and Blue Etc
Operating Temperature : From -20℃ to +80℃
Flammability : UL94V-2
Certification : IP68 , ROHS , PAHS, REACH
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Right Angle Cable Glands For PG Thread | |||||

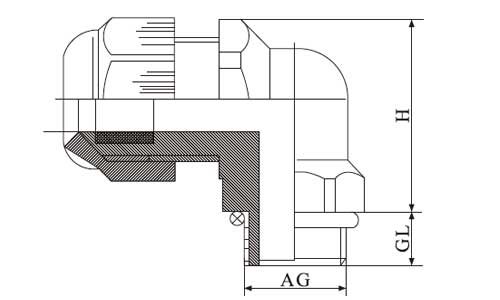

| Item No. | Cable Range(mm) | GL(mm) | H(mm) | Spanner Size(mm) | AG(mm) |
| RA-PG9 | 4–8 | 8 | 37 | 19 | 15.2 |
| RA-PG9 | 2–6 | 8 | 37 | 19 | 15.2 |
| RA-PG11 | 5–10 | 8 | 39 | 22 | 18.6 |
| RA-PG11 | 3–7 | 8 | 39 | 22 | 18.6 |
| RA-PG13.5 | 6–12 | 9 | 43 | 24 | 20.4 |
| RA-PG13.5 | 5–9 | 9 | 43 | 24 | 20.4 |
| RA-PG16 | 10–14 | 10 | 48 | 27 | 22.5 |
| RA-PG16 | 7–12 | 10 | 48 | 27 | 22.5 |
| RA-PG21 | 13–18 | 11 | 56 | 33 | 28.3 |
| RA-PG21 | 9–16 | 11 | 56 | 33 | 28.3 |
| RA-PG29 | 18–25 | 11 | 68 | 41/42 | 37 |
| RA-PG29 | 13–20 | 11 | 68 | 41/42 | 37 |
| Right Angle Cable Glands For Metric Thread | |||||
| Item No. | Cable Range(mm) | GL(mm) | H(mm) | Spanner Size(mm) | AG(mm) |
| RA-M16*1.5 | 4–8 | 8 | 37 | 19 | 16 |
| RA-M16*1.5 | 2–6 | 8 | 37 | 19 | 16 |
| RA-M18*1.5 | 5–10 | 8 | 39 | 22 | 18 |
| RA-M18*1.5 | 3–7 | 8 | 39 | 22 | 18 |
| RA-M20 x 1.5 | 6–12 | 9 | 43 | 24 | 20 |
| RA-M20 x 1.5 | 5–9 | 9 | 43 | 24 | 20 |
| RA-M22 x 1.5 | 10–14 | 10 | 48 | 27 | 22 |
| RA-M22 x 1.5 | 7–12 | 10 | 48 | 27 | 22 |
| RA-M25 x 1.5 | 13–18 | 11 | 56 | 33 | 25 |
| RA-M25 x 1.5 | 9–16 | 11 | 56 | 33 | 25 |
| RA-M32 x 1.5 | 18-25 | 11 | 68 | 41/42 | 32 |
| RA-M32 x 1.5 | 13-20 | 11 | 68 | 41/42 | 32 |
| Right Angle Cable Glands For NPT Thread | |||||
| Item No. | Cable Range(mm) | GL(mm) | H(mm) | Spanner Size(mm) | AG(mm) |
| RA-NPT3/8″ | 4–8 | 13 | 42 | 19 | 17 |
| RA-NPT3/8″ | 2–6 | 13 | 42 | 19 | 17 |
| RA-NPT1/2″ | 6–12 | 13 | 43 | 24 | 21.2 |
| RA-NPT1/2″ | 5–9 | 13 | 43 | 24 | 21.2 |
| RA-NPT3/4″ | 13–18 | 13 | 58 | 33 | 26.2 |
| RA-NPT3/4″ | 9–16 | 13 | 58 | 33 | 26.2 |
| RA-NPT1″ | 18–25 | 15 | 72 | 41/42 | 33.3 |
| RA-NPT1″ | 13–20 | 15 | 72 | 41/42 | 33.3 |
