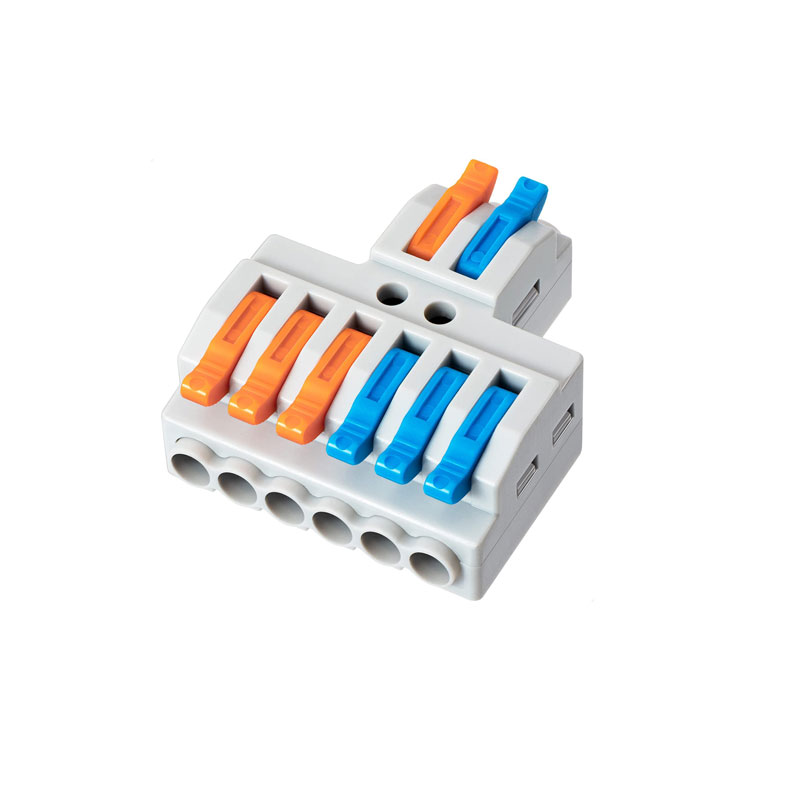

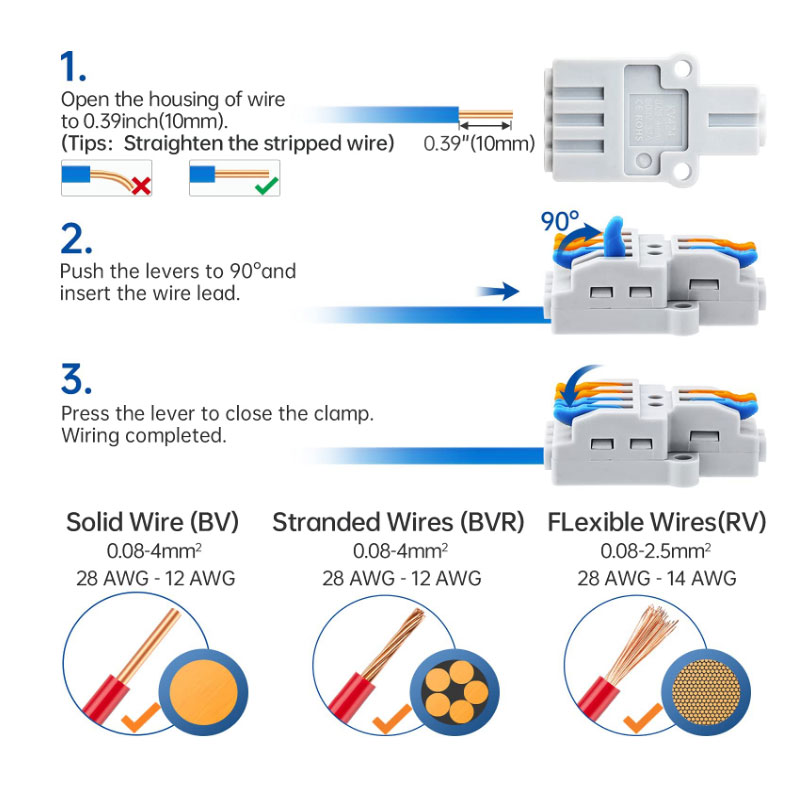

Quick Lever Nuts ( 2 In 6 Out ) are widely applied for motor, electrical control, power supply, home appliance, machinery and other electrical connections. It is suitable for hard wire 0.5-4.0mm²/ AWG22-12, soft wire 0.5-2.5mm²/AWG22-14.
Quick Lever Nuts’ shell is made of nylon PA66, which has flame retardant and high temperature resistance, reducing potential safety hazards. Connection conductor is tinned with pure copper, strong conductivity, rust resistance and corrosion resistance. Built-in stainless steel spring buckle, strong elasticity, not easy to fall off.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

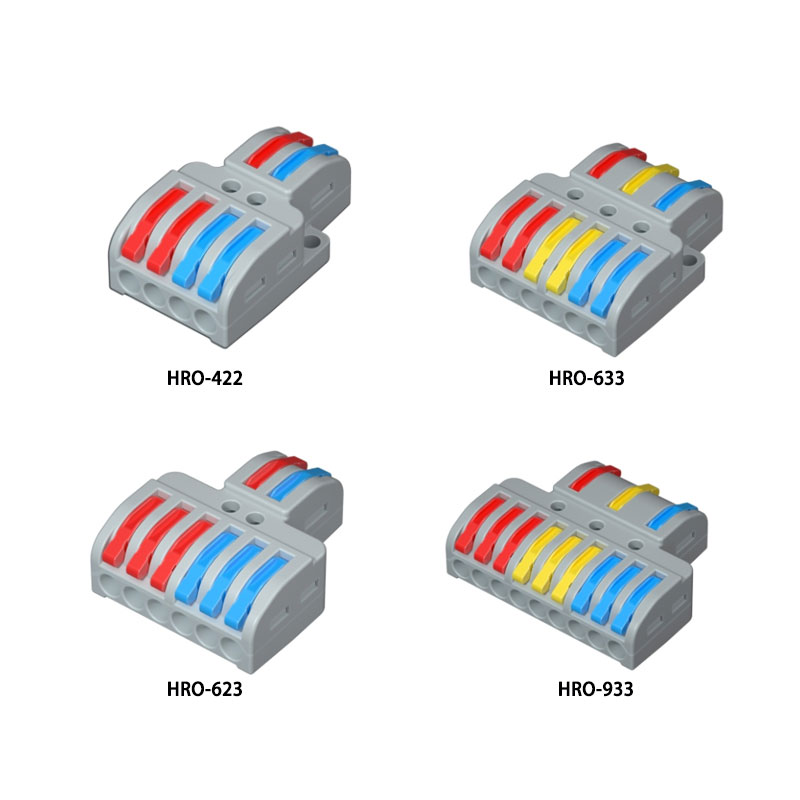

| Item No | Connection Method | Wire Range | Specification | Color of Lever | |
| Voltage | Current | ||||
| HRO-422 | 2 In 4 Out | 0.5-4mm2 | 450V | 32A | Orange / Brown / Red / Blue / Yellow |
| HRO-633 | 3 In 6 Out | 0.5-4mm2 | 450V | 32A | Orange / Brown / Red / Blue / Yellow |
| HRO-623 | 2 In 6 Out | 0.5-4mm2 | 450V | 32A | Orange / Brown / Red / Blue / Yellow |
| HRO-933 | 3 In 9 Out | 0.5-4mm2 | 450V | 32A | Orange / Brown / Red / Blue / Yellow |
