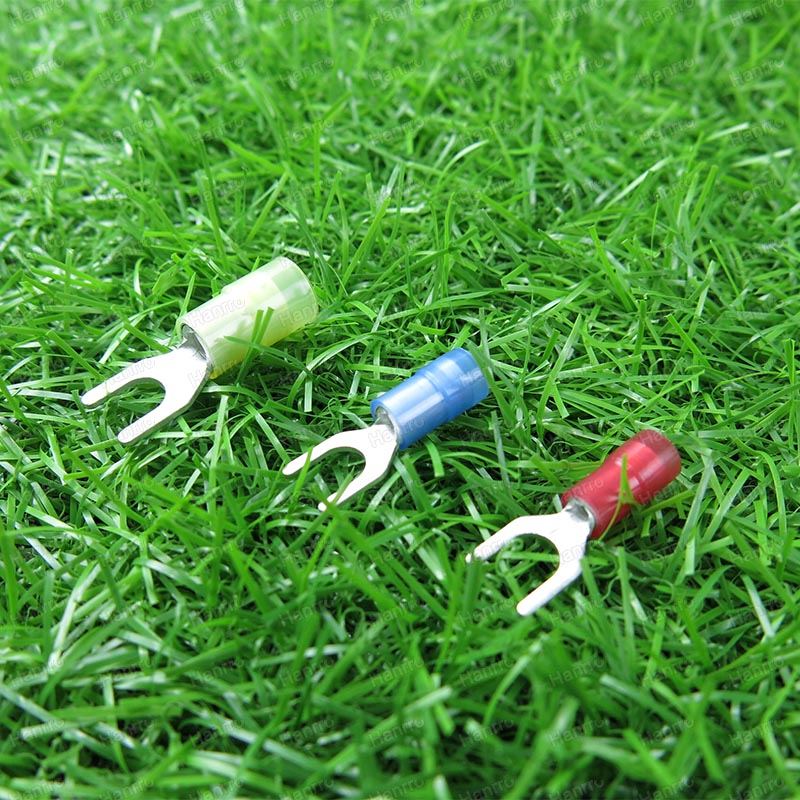

Nylon Insulated Spade Terminals provide higher temperature and better durability than vinyl. For the maximum protection and environmental exposure, use heat shrink spade terminals. Tin-plated brass construction for corrosion resistance
Product Name : Nylon Insulated Spade Terminals-Double Crimp
Material of Body : Copper , Tin Plated
Material of Sleeve : Copper, Tin Plated
Material of Insulation : Nylon

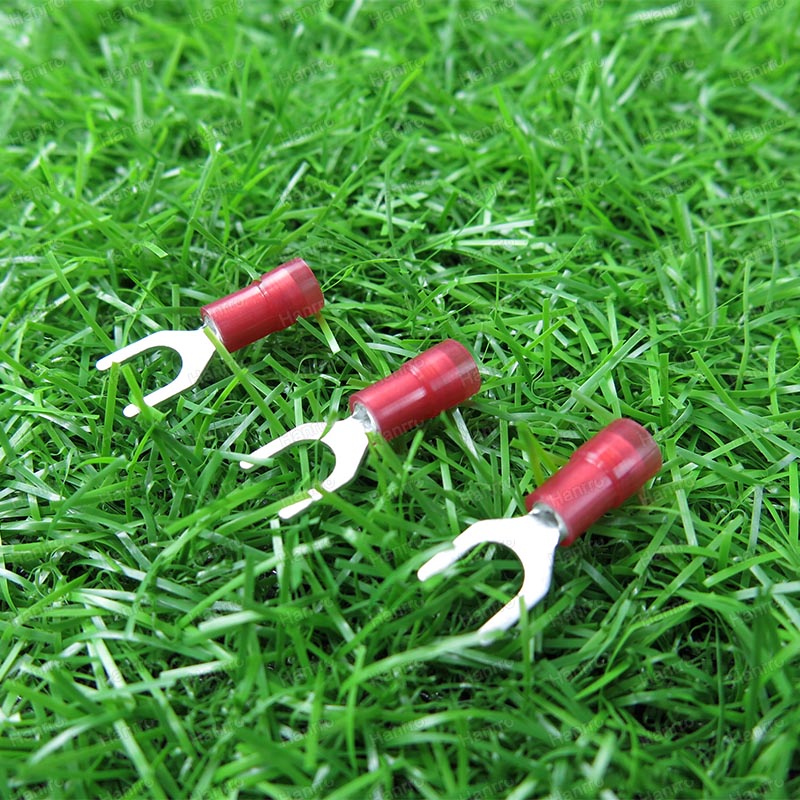

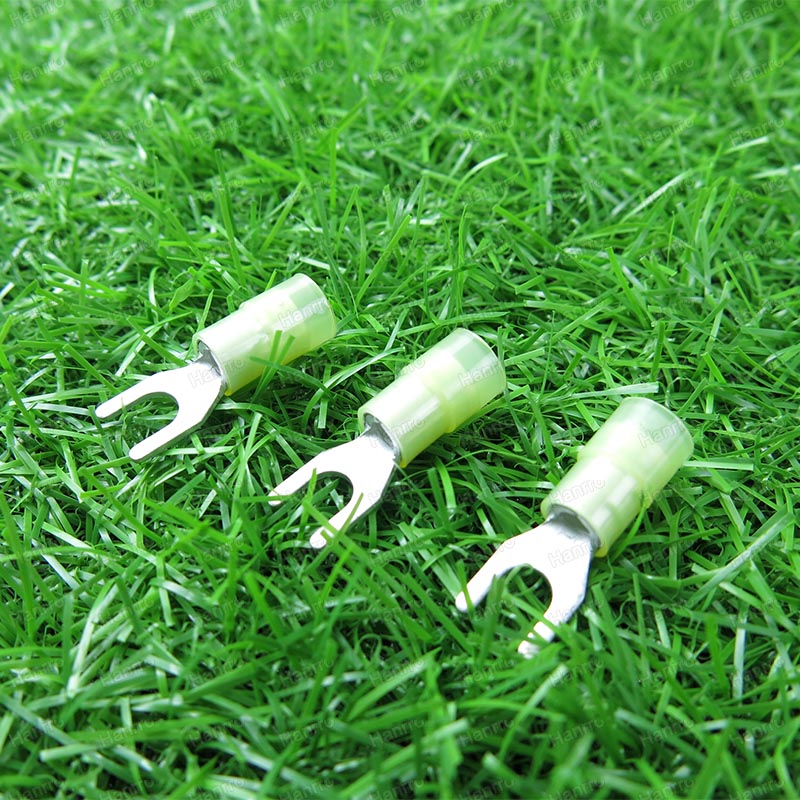

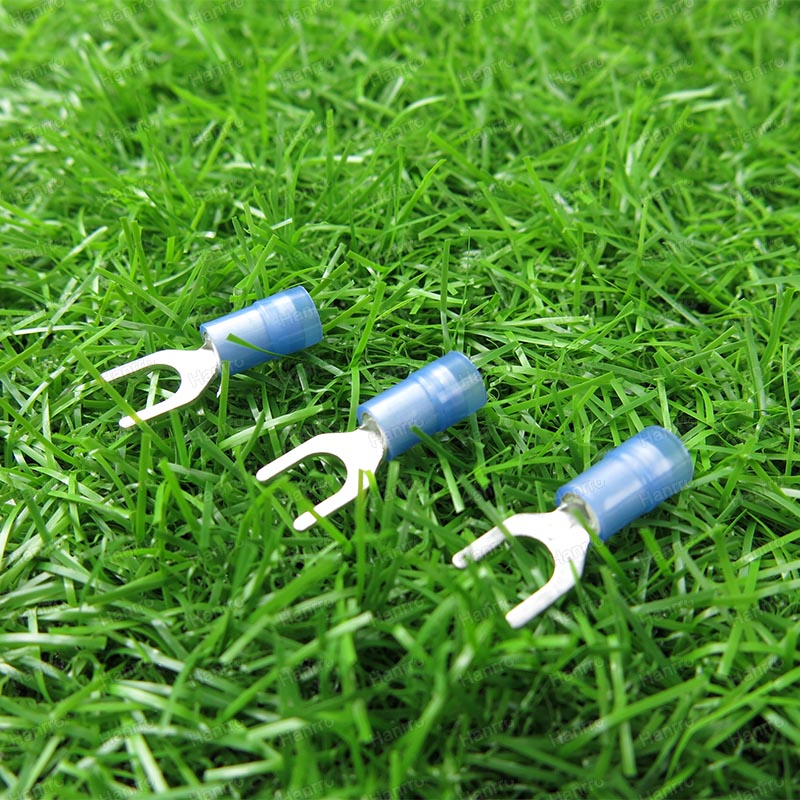

Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

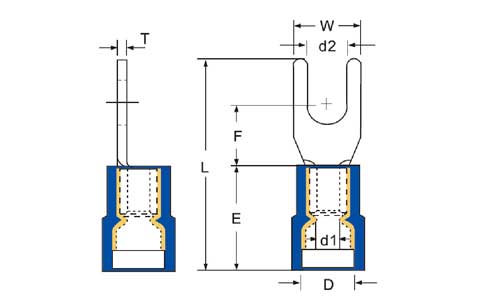

| Item No | Wire Size(mm2) | AWG | d2 | W | F | L | E | D | d1 | T | Color | ||||
| mm | USA | ||||||||||||||
| SNYD 1.25-3 | 0.5-1.5 | 22-16 | 3.2 | #4 | 5.7 | 6.5 | 22.8 | 11.7 | 4.7 | 1.7 | 0.75 | ||||
| SNYD 1.25-3.5S | 3.7 | #6 | 5.7 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-3.5L | 3.7 | #6 | 6.4 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-4S | 4.3 | #8 | 6.4 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-4M | 4.3 | #8 | 7.2 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-4L | 4.3 | #8 | 8.1 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-5S | 5.3 | #10 | 8.1 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-5L | 5.3 | #10 | 9.5 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-6S | 6.4 | 1/4" | 9.5 | 6.5 | 22.8 | ||||||||||
| SNYD 1.25-6L | 6.4 | 1/4" | 12.0 | 11.0 | 29.0 | ||||||||||
| SNYD 2-3 | 1.5-2.5 | 16-14 | 3.2 | #4 | 5.7 | 6.5 | 22.7 | 11.7 | 5.6 | 2.3 | 0.8 | ||||
| SNYD 2-3.5S | 3.7 | #6 | 5.7 | 6.5 | 22.7 | ||||||||||
| SNYD 2-3.5L | 3.7 | #6 | 6.2 | 6.5 | 22.7 | ||||||||||
| SNYD 2-4S | 4.3 | #8 | 6.4 | 6.5 | 22.7 | ||||||||||
| SNYD 2-4M | 4.3 | #8 | 7.2 | 6.5 | 22.7 | ||||||||||
| SNYD 2-4L | 4.3 | #8 | 8.1 | 6.5 | 22.7 | ||||||||||
| SNYD 2-5S | 5.3 | #10 | 8.1 | 6.5 | 22.7 | ||||||||||
| SNYD 2-5L | 5.3 | #10 | 9.5 | 6.5 | 22.7 | ||||||||||
| SNYD 2-6S | 6.4 | 1/4" | 9.5 | 6.5 | 22.7 | ||||||||||
| SNYD 2-6L | 6.4 | 1/4" | 12.0 | 11.0 | 22.7 | ||||||||||
| SNYD 5.5-3.5 | 4.0-6.0 | 12-10 | 3.7 | #6 | 7.2 | 7.5 | 24.8 | 14.0 | 7.1 | 3.4 | 1.0 | ||||
| SNYD 5.5-4S | 4.3 | #8 | 8.3 | 7.5 | 26.0 | ||||||||||
| SNYD 5.5-4L | 4.3 | #8 | 9.0 | 7.5 | 26.0 | ||||||||||
| SNYD 5.5-5 | 5.3 | #10 | 9.0 | 7.5 | 26.0 | ||||||||||
| SNYD 5.5-6S | 6.4 | 1/4" | 9.0 | 7.5 | 26.0 | ||||||||||
| SNYD 5.5-6L | 6.4 | 1/4" | 12.0 | 12.0 | 32.0 | ||||||||||
| SNYD 5.5-8 | 8.4 | 5/16" | 14.0 | 11.5 | 30.8 | ||||||||||
