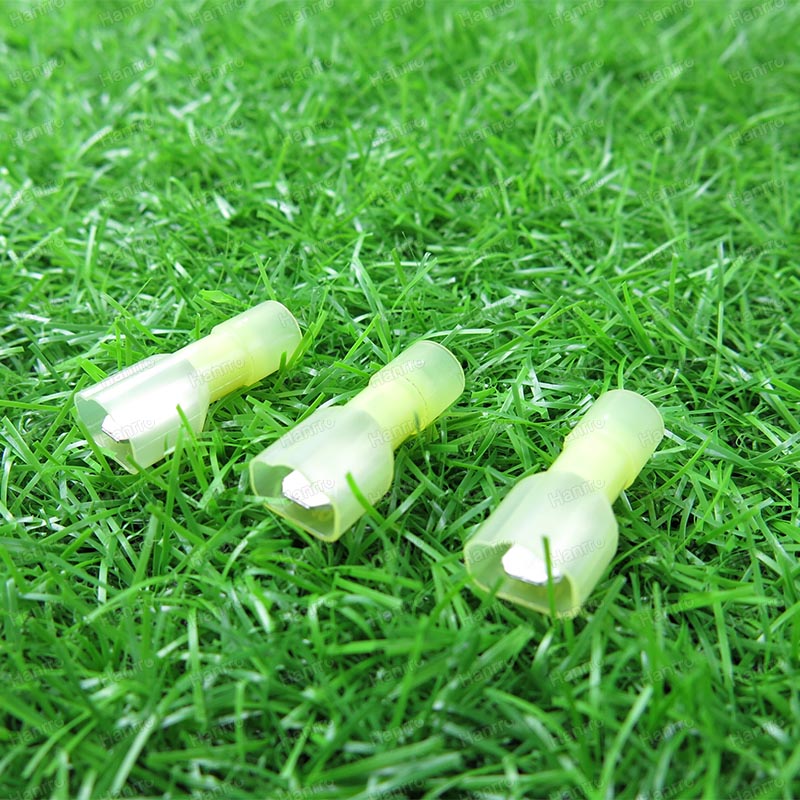

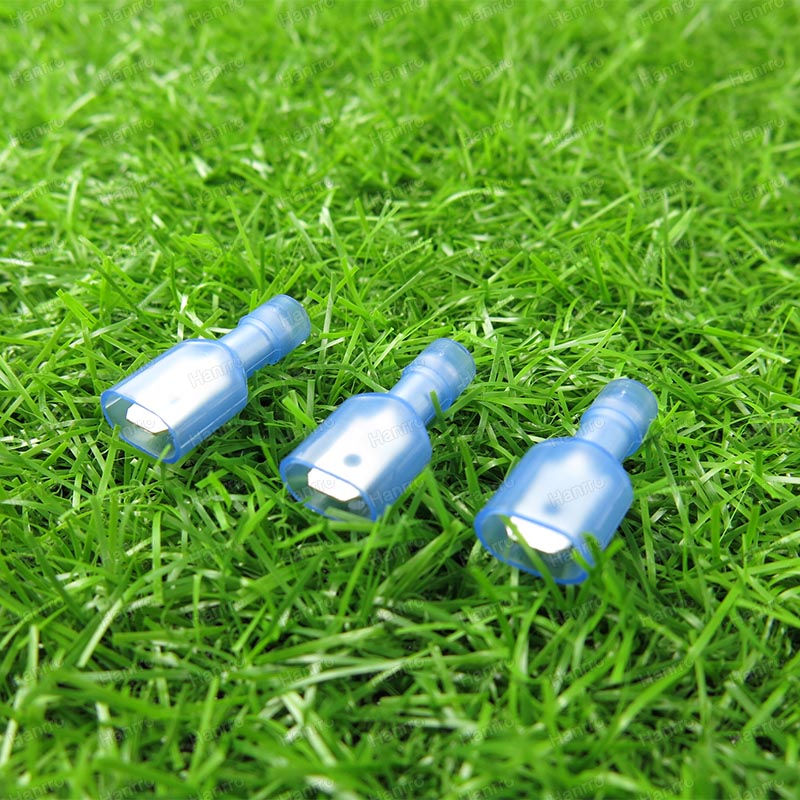

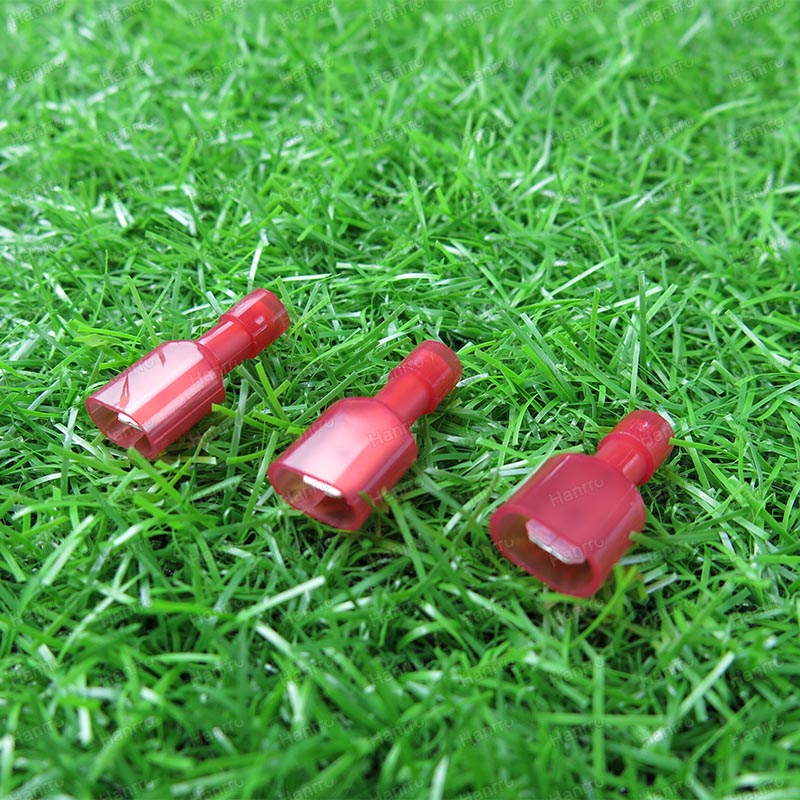

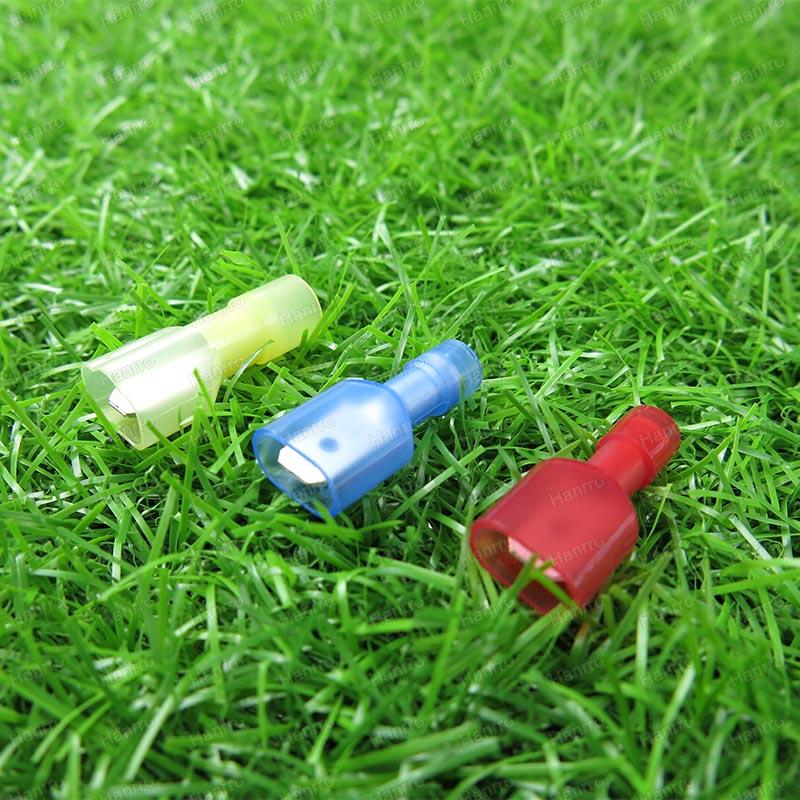

Male Quick Disconnect Terminals

Male Quick Disconnect Terminals providing fast and reliable connection and disconnection of two wires, fully-insulated Quick Disconnect Terminals are available in a variety of options to meet industry requirements spanning automotive, consumer and industrial appliccations.

Feature:

Butted seam-construction prevents splitting under maximum pressure

Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance

Tin-plated brass construction for corrosion resistance

Shouldered barrel insulation quickly positions terminal for proper crimping

Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support

Color-coded insulation and wire range stamped on terminal for easy identification

Product Name : Nylon Fully Insulated Male Quick Disconnects-Double Crimp

Material of Body : Brass , Tin Plated

Material of Sleeve : Copper, Tin Plated

Material of Insulation : Nylon

Color of Insulation : Red , Blue , Yellow

Testing Report : ROHS

Certification : CE

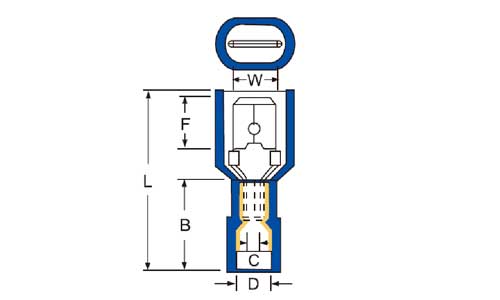

Male Quick Disconnect Terminals-Drawing

tag：

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No  Wire Size(mm2) AWG NEMA TAB W  F  L  B  D  C T  Color
MDFNYD1-187(5) 0.5-1.5 22-16 0.5 x 4.75 4.8 6.5 22.0 11.0 4.0 1.7 0.5
MDFNYD1-187(8) 0.8 x 4.75 4.8 6.5 22.0 4.0 1.7 0.4
MDFNYD1-250 0.8 x 6.35 6.35 7.7 24.0 4.0 1.7 0.4
MDFNYD2-187(5) 1.5-2.5 16-14 0.5 x 4.75 4.8 6.5 22.0 5.0 2.3 0.5
MDFNYD2-187(8) 0.8 x 4.75 4.8 6.5 22.0 5.0 2.3 0.4
MDFNYD2-250 0.8 x 6.35 6.35 7.7 24.0 5.0 2.3 0.4
MDFNYD5-250 4.0-6.0 12-10 0.8 x 6.35 6.35 7.7 26.0 13.0 6.5 3.4 0.4
