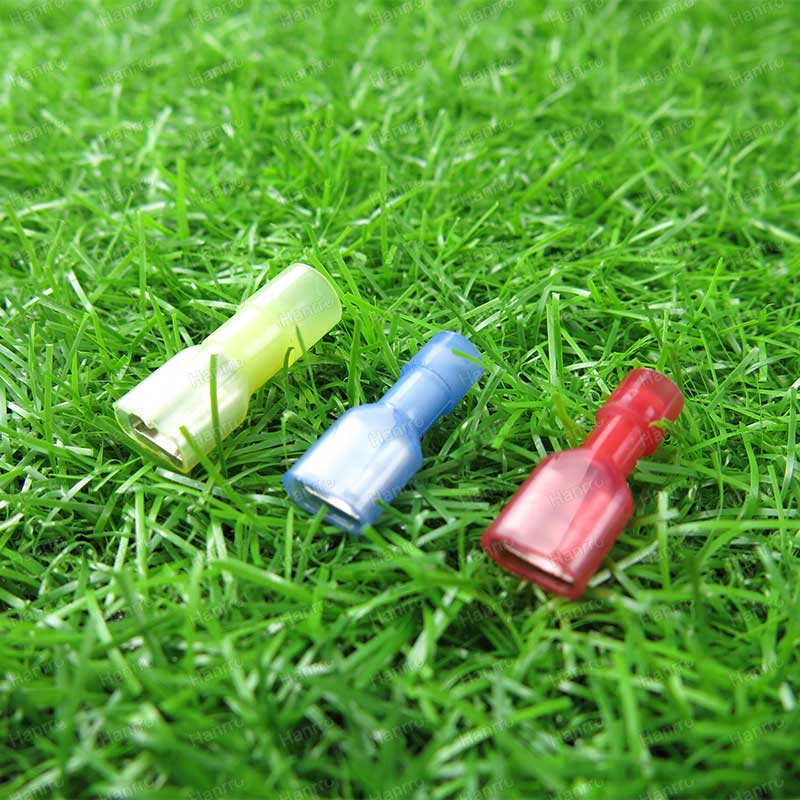

Female Quick Disconnect Terminals providing fast and reliable connection and disconnection of two wires, fully-insulated Quick Disconnect Terminals are available in a variety of options to meet industry requirements spanning automotive, consumer and industrial appliccations.
Feature:
Butted seam-construction prevents splitting under maximum pressure
Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin-plated brass construction for corrosion resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Color-coded insulation and wire range stamped on terminal for easy identification
Product Name : Nylon Fully Insulated Female Quick Disconnects-Double Crimp
Material of Body : Brass , Tin Plated
Material of Sleeve : Copper, Tin Plated
Material of Insulation : Nylon
Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

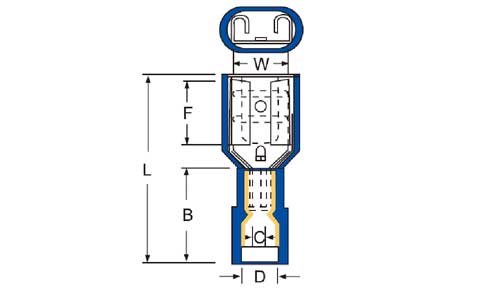

| Item No | Wire Size(mm2) | AWG | NEMA TAB | W | F | L | B | D | C | T | Color | ||
| FDFNYD1-110(5) | 0.5-1.5 | 22-16 | 0.5 x 2.8 | 3.2 | 6.5 | 19.5 | 11.0 | 4.0 | 1.7 | 0.3 | |||
| FDFNYD1-110(8) | 0.8 x 2.8 | 3.2 | 6.5 | 19.5 | 4.0 | 1.7 | 0.3 | ||||||
| FDFNYD1-187(5) | 0.5 x 4.75 | 5.0 | 6.4 | 20.2 | 4.0 | 1.7 | 0.35 | ||||||
| FDFNYD1-187(8) | 0.8 x 4.75 | 5.0 | 6.4 | 20.2 | 4.0 | 1.7 | 0.35 | ||||||
| FDFNYD1-250 | 0.8 x 6.35 | 6.6 | 7.5 | 21.5 | 4.0 | 1.7 | 0.4 | ||||||
| FDFNYD2-187(5) | 1.5-2.5 | 16-14 | 0.5 x 4.75 | 5.0 | 6.4 | 20.2 | 5.0 | 2.3 | 0.35 | ||||
| FDFNYD2-187(8) | 0.8 x 4.75 | 5.0 | 6.4 | 20.2 | 5.0 | 2.3 | 0.35 | ||||||
| FDFNYD2-250 | 0.8 x 6.35 | 6.6 | 7.5 | 21.5 | 5.0 | 2.3 | 0.4 | ||||||
| FDFNYD5-250 | 4.0-6.0 | 12-10 | 0.8 x 6.35 | 6.6 | 7.5 | 24.2 | 13.0 | 6.5 | 3.4 | 0.4 | |||
