Compact Splicing Connectors

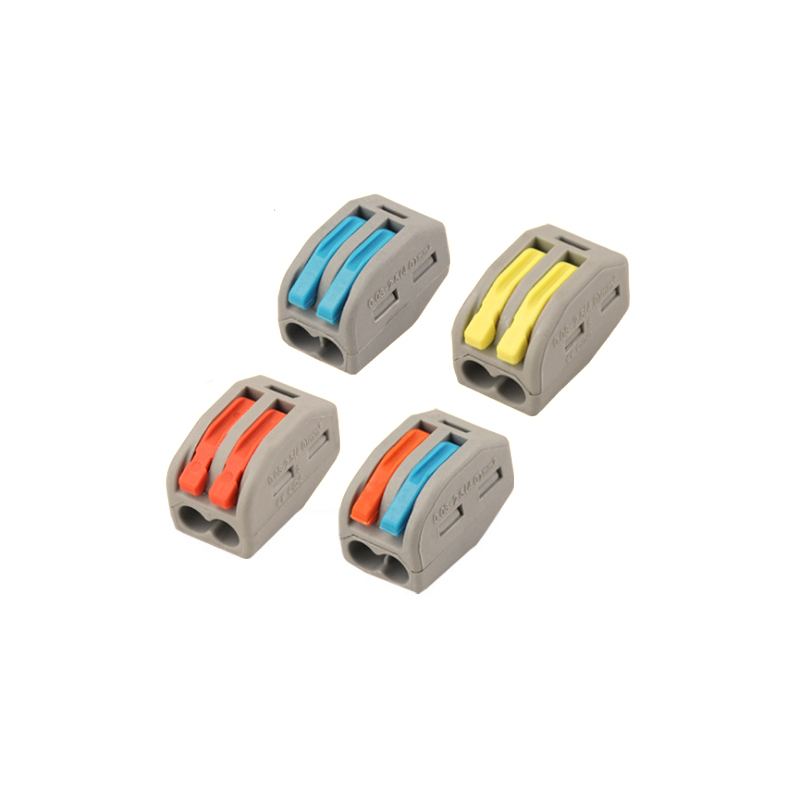

Compact Splicing Connectors are similar as WAGO 222 Series designed for all wire types: solid, stranded, and flexible copper wires · 2-8 Conductor Terminal Block , With Operating Levers From 0.5-4mm2. It come with Grey Color body and Different Color of Levers

FAQ :

Question : What is the Material of Compact Splicing Connector s?

Answer : The Material of Body be Nylon 66

The Material of Spring be Stainless Steel

The Material of Contact be Copper

Question : How many Types Does It have ?

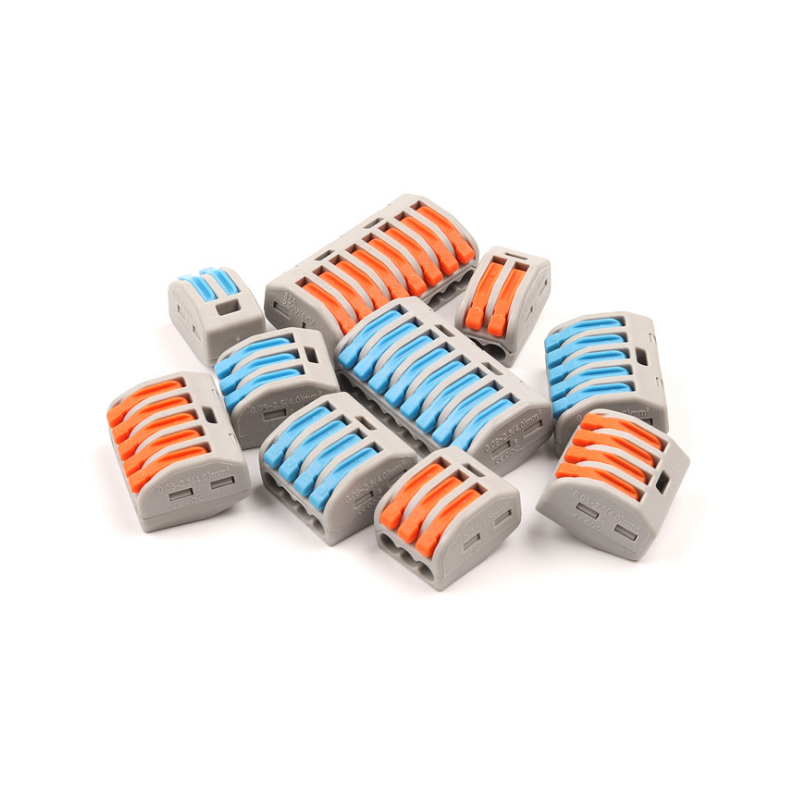

Answer : There are Total 5 Types Which be 2 , 3, 4, 5 and 8 Conductors

Compared to Original WAGO 222 Series , 4 and 8 Way be Special

Question : What is the Application Wire Range ?

Answer : Whether Solid or Stranded , 0.5-4mm2 be available

Question : How to use the Compact Splicing Connectors ?

Answer : Please follow the steps :

1 : Strip Wire Length about 12-13mm

2 : Open the Lever to 90 Degree

3 : Insert Wire Into Hole , Then Put Down Lever , Then Done

Question : Do you have Parts Which can help These Connectors Fixed ?

Answer : Yes , You can buy Plastic Fixing Part to Fix Connectors by Screw

Please Visit : Mounting Clips
