222-415 can be connected Solid, stranded and fine-stranded conductors up to 4mm2
The universal 222 Series for solid, stranded and fine-stranded conductors. With its connecting range of 0.08 mm² -2.5 mm² “s”/4 mm² “f-st”, it connects lighting fixtures, sunblinds, awnings, door and gate controls,
Inter phones, Pumps, loudspeakers and many other applications … , without tools!
Connection of different types of conductors and bridging large differences in cross section are the forte of
The 222-415.In practical use, this connector be used for intercom wiring, up to hook-up of an electric stove
Fast and safe connections.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Electrical data | |
|
Ratings per IEC/EN 60664-1
|
|
|
Rated voltage (II / 2)
|
400 V |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated current | 32 A |
|
Connection data
|
|
|
Connection technology
|
CAGE CLAMP® |

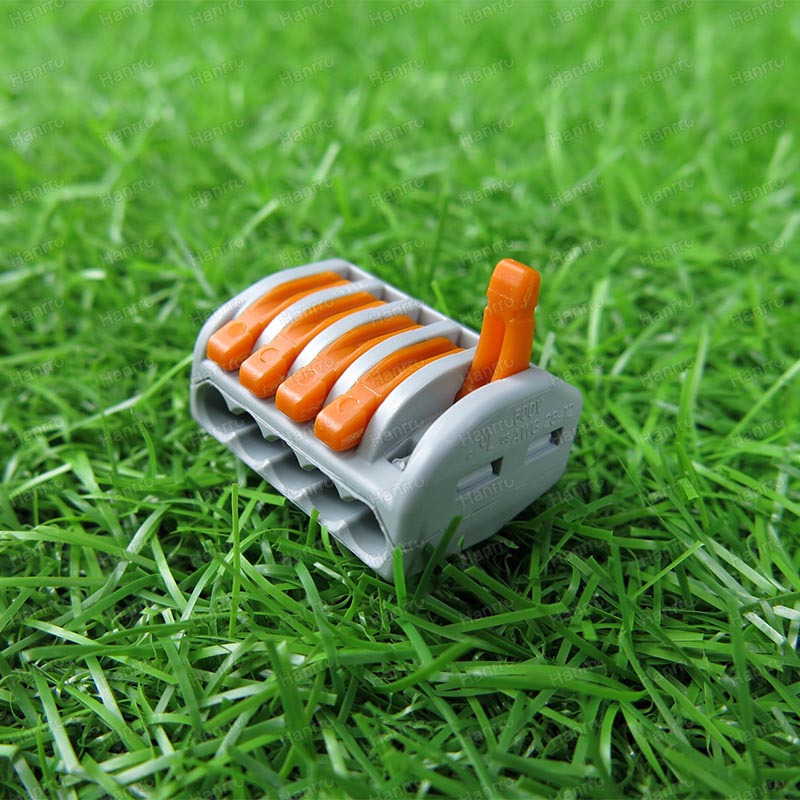

| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inch |
| Total number of connection points | 5 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Leiterquerschnitte eindrähtig | 0.08 mm² |
| More | |
|
Geometrical Data
|
|
|
Width
|
26.6 mm / 1.047 inch |
| Height | 14.5 mm / 0.571 inch |
| Depth | 20.5 mm / 0.807 inch |
| Plug width | 26.6 mm / 1.047 inch |
|
Material Data
|
|
|
Color
|
gray |
| Flammability class per UL94 | V0 |
| Fire load | 0.129 MJ |
| Weight | 6.581 g |
|
Environmental Requirements
|
|
|
Continuous operating temperature
|
85 °C |
|
Commercial data
|
|
|
Country of origin
|
DE |
| GTIN | 4044918464956 |
| Customs Tariff No. | 85369010000 |
